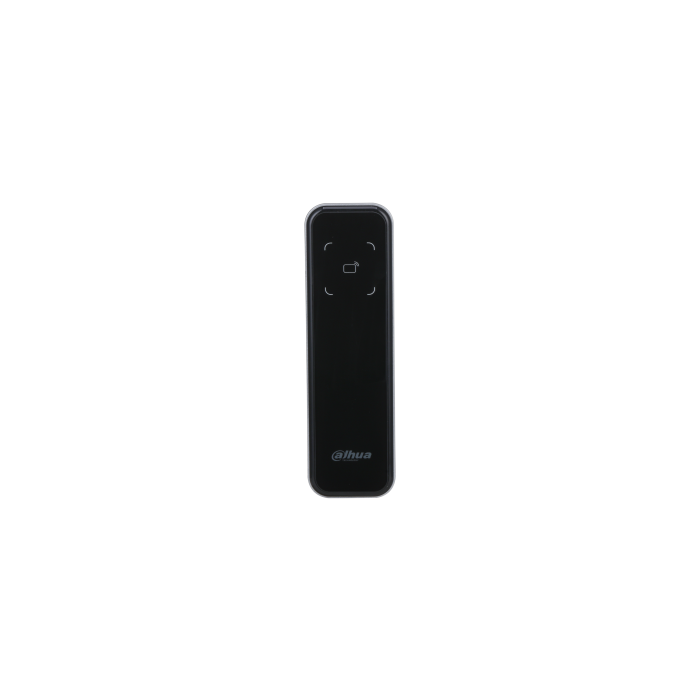

Dahua Slim IC Card Access Reader with Tempered Glass Panel.
Dahua Slim IC Card Access Reader with Tempered Glass Panel. Supports contactless Mifare IC card recognition at 13.56MHz with a card reading distance o...
Dahua Slim IC Card Access Reader with Tempered Glass Panel. Supports contactless Mifare IC card recognition at 13.56MHz with a card reading distance of 0–5cm and 0.1s response time. Communicates via RS-485 and Wiegand 34, with IP66 weatherproofing, anti-tamper alarm, and built-in watchdog for reliable long-term operation.
In Stock
| Store | Stock |
|---|---|
| PureTech UK | 8 |
| PureTech Derby | Available to order |
SKU:
DHI-ASR2200A
Click to copy
✔ Copied!
Product Details
Dahua Slim IC Card Access Reader with Tempered Glass Panel. Supports contactless Mifare IC card recognition at 13.56MHz with a card reading distance of 0–5cm and 0.1s response time. Communicates via RS-485 and Wiegand 34, with IP66 weatherproofing, anti-tamper alarm, and built-in watchdog for reliable long-term operation.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP66 (silicon sealant required, see manual) |
| Camera Body Style | Slim |
| Buzzer | Yes |
| Card Reading Distance | 0–5 cm |
| Card Type | IC card (Mifare) |
| Casing | Tempered glass / PC |
| Certifications | CE, FCC |
| Communication Ports | RS-485 (1 channel), Wiegand output (1 channel) |
| Dimensions | 135mm × 40mm × 15mm (L × W × H) |
| Frequency | 13.56 MHz |
| Installation | Surface mount |
| Max Transmission Power | 42 dBuA/m at 10m |
| Modulation Type | AM |
| Operating Environment | Indoor and outdoor |
| Operating Humidity | 5%RH–95% non-condensing |
| Operating Temperature | -30°C to +70°C |
| Power Consumption | Standby ≤0.9W, Working ≤1.7W |
| Power Supply | 12V DC, 0.5A |
| Response Time | 0.1 s |
| Tamper Alarm | Yes |
| Unlock Mode | Card swiping |
| Watchdog | Built-in |
