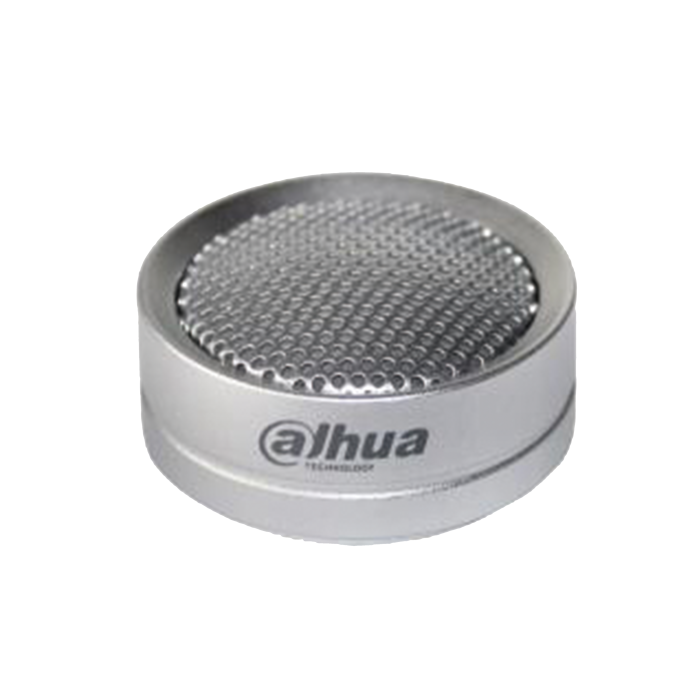

Dahua Hi-fidelity Omni-directional Audio Pickup Microphone.
Dahua Hi-fidelity Omni-directional Audio Pickup Microphone. Features a high-sensitivity plated film capacitor microphone head with omnidirectional pic...
Dahua Hi-fidelity Omni-directional Audio Pickup Microphone. Features a high-sensitivity plated film capacitor microphone head with omnidirectional pickup pattern covering 10–70 m², a frequency response of 80Hz–16kHz, and a signal-to-noise ratio of 58dB. Includes lightning protection, power polarity transposition protection, and electrostatic protection. Connects via RCA female connector and is powered by 12V DC.
Contact 0345 863 9750 for availability
SKU:
DH-HAP120
Click to copy
✔ Copied!
Color
Silver
Click to copy
✔ Copied!
Product Details
Dahua Hi-fidelity Omni-directional Audio Pickup Microphone. Features a high-sensitivity plated film capacitor microphone head with omnidirectional pickup pattern covering 10–70 m², a frequency response of 80Hz–16kHz, and a signal-to-noise ratio of 58dB. Includes lightning protection, power polarity transposition protection, and electrostatic protection. Connects via RCA female connector and is powered by 12V DC.
| Manufacturer | Dahua |
|---|---|
| Application Scenarios | Electronic examination room, bank, guard room |
| Certifications | CE, FCC |
| Coverage Area | 10–70 m² |
| Directional Characteristic | Omni-directional |
| Dynamic Range | 74dB |
| Frequency Response | 80Hz–16kHz |
| Interface | RCA female connector, DC Power connector |
| Material | Aluminum |
| Max Sound Pressure | 110dBSPL (1kHz, THD 1%) |
| Microphone Type | Plated film capacitor microphone head |
| Output Impedance | 600Ω (non-equilibrium) |
| Output Signal Amplitude | 2.5Vpp / 88dBSPL |
| Protections | Lightning protection, power polarity transposition protection, electrostatic protection |
| Sensitivity | -34 ± 3 dB |
| SNR | 58dB |
| Working Current | 40mA |
| Working Temperature | -30°C to +70°C |
| Working Voltage | DC 12V |
| Dimensions | Φ40mm × 20mm |
