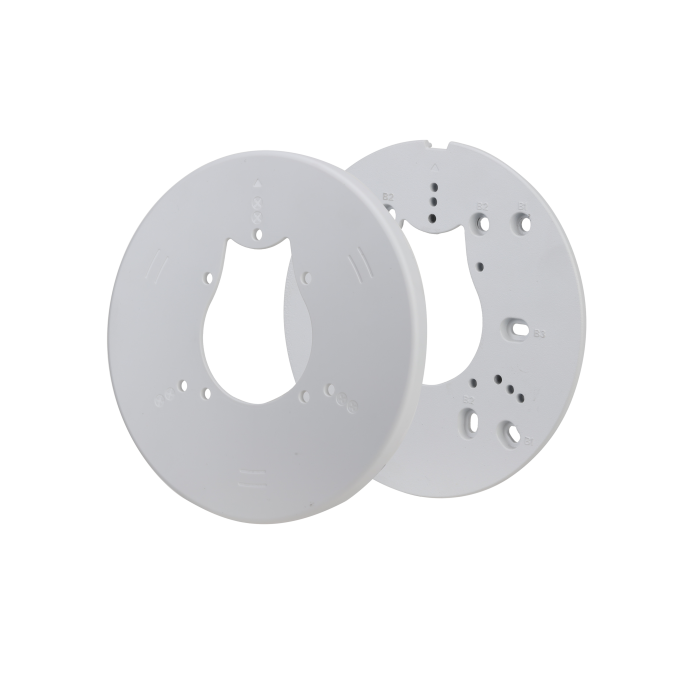

Dahua Gang Box Adapter for indoor in-ceiling camera installation.
Dahua Gang Box Adapter for indoor in-ceiling camera installation. Constructed from aluminum alloy and ABS, this circular adapter plate (154mm diameter...
Dahua Gang Box Adapter for indoor in-ceiling camera installation. Constructed from aluminum alloy and ABS, this circular adapter plate (154mm diameter, 8.5mm depth) bridges the gap between standard electrical junction boxes and compatible dome cameras. Suitable for 4-inch square, 4-inch octagon, single or double-gang junction boxes, with a front load bearing capacity of 1kg.
Contact 0345 863 9750 for availability
SKU:
DH-PFA200G
Click to copy
✔ Copied!
Color
White
Click to copy
✔ Copied!
Product Details
Dahua Gang Box Adapter for indoor in-ceiling camera installation. Constructed from aluminum alloy and ABS, this circular adapter plate (154mm diameter, 8.5mm depth) bridges the gap between standard electrical junction boxes and compatible dome cameras. Suitable for 4-inch square, 4-inch octagon, single or double-gang junction boxes, with a front load bearing capacity of 1kg.
| Manufacturer | Dahua |
|---|---|
| Compatible Junction Boxes | 4" square, 4" octagon, single-gang, double-gang |
| Load Bearing Front | 1.0kg (2.2lb) |
| Material | Aluminum alloy + ABS |
| Package Contents | Gang box adapter x1, Cover x1, M4 screw x3, S3.0 wrench x1, User manual x1 |
| Installation Type | Indoor in-ceiling |
| Dimensions | Ø154mm x 8.5mm (Ø6.06" x 0.33") |
| Net Weight | 0.16kg (0.35lb) |
| Gross Weight | 0.23kg (0.51lb) |
| Packaging Dimensions | 165.0mm x 33.0mm x 167.0mm (L x W x H) |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Operating Humidity | 0–90% RH |
| Storage Humidity | 10%–90% RH |
| Anti Corrosion Level | Basic Protection |
