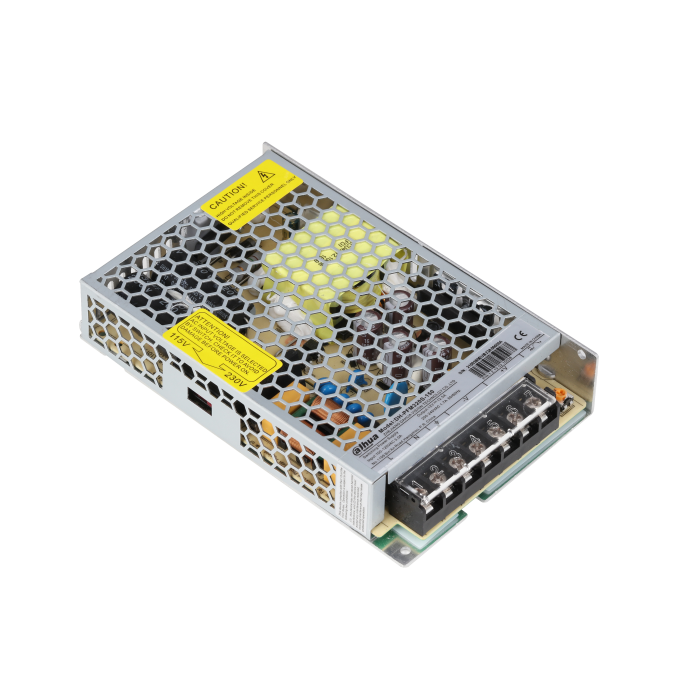

Dahua DC 12V 150W Switching Power Supply.
Dahua DC 12V 150W Switching Power Supply. Accepts wide-range AC input (88–132V or 176–264V) and delivers a stable 12V DC output at up to 12.5A. Output...
Dahua DC 12V 150W Switching Power Supply. Accepts wide-range AC input (88–132V or 176–264V) and delivers a stable 12V DC output at up to 12.5A. Output voltage is adjustable within ±10% (10.8–13.2V) to suit varying load requirements. Certified to CE and FCC standards; supports wall or ceiling mounting.
Contact 0345 863 9750 for availability
SKU:
DH-PFM320S-150
Click to copy
✔ Copied!
Product Details
Dahua DC 12V 150W Switching Power Supply. Accepts wide-range AC input (88–132V or 176–264V) and delivers a stable 12V DC output at up to 12.5A. Output voltage is adjustable within ±10% (10.8–13.2V) to suit varying load requirements. Certified to CE and FCC standards; supports wall or ceiling mounting.
| Manufacturer | Dahua |
|---|---|
| Adjustable Voltage Range | ±10% (10.8Vdc–13.2Vdc) |
| Certifications | CE, FCC |
| Dimensions Mm | 159 x 97 x 30 |
| Efficiency | 85.0% at 230Vac |
| ESD Protection | Contact discharge ±6000V; Air discharge ±8000V |
| Input Voltage | 88–132Vac / 176–264Vac (wide-range dual band) |
| Installation | Wall mount / Ceiling mount |
| No Load Power Consumption | <0.5W |
| Output Power | 150W |
| Output Voltage | 12Vdc (terminal output) |
| Output Voltage Tolerance | ±5% |
| Rated Output Current | 12.5A |
| Surge Protection | Line to ground ±2000V; Line to line ±1000V |
| Weight Kg | 0.4 |
| Working Humidity | <90% RH |
| Working Temperature | -20°C to +50°C (60% output at +70°C) |
