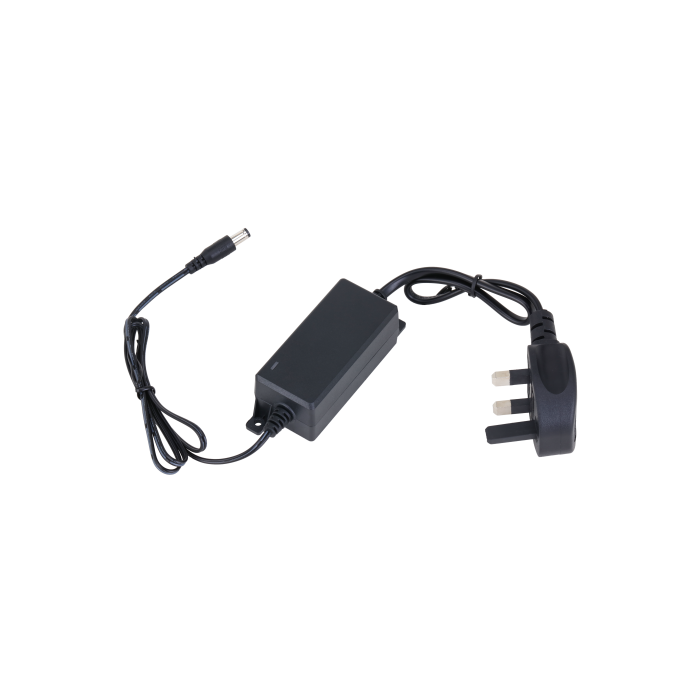

Dahua 12V DC 1A Desktop Power Adapter with British Standard (BS) Plug.
Dahua 12V DC 1A Desktop Power Adapter with British Standard (BS) Plug. Converts 100–240V AC mains input to a regulated 12V DC output at up to 1A (12W ...
Dahua 12V DC 1A Desktop Power Adapter with British Standard (BS) Plug. Converts 100–240V AC mains input to a regulated 12V DC output at up to 1A (12W rated), suitable for powering security cameras and similar 12V devices. Features overcurrent, overvoltage and short circuit protection, plus surge protection of ±4kV common mode and ±2kV differential mode. Output connector is 5.5mm × 2.1mm barrel jack with 800mm cable.
Contact 0345 863 9750 for availability
SKU:
DH-PFM325D-1210BS
Click to copy
✔ Copied!
Product Details
Dahua 12V DC 1A Desktop Power Adapter with British Standard (BS) Plug. Converts 100–240V AC mains input to a regulated 12V DC output at up to 1A (12W rated), suitable for powering security cameras and similar 12V devices. Features overcurrent, overvoltage and short circuit protection, plus surge protection of ±4kV common mode and ±2kV differential mode. Output connector is 5.5mm × 2.1mm barrel jack with 800mm cable.
| Manufacturer | Dahua |
|---|---|
| Flammability Rating | UL94 V-0 |
| Input Cable Length | 350mm |
| Input Current Max | 0.6A |
| Input Frequency | 50/60 Hz |
| Input Voltage | 100–240V AC |
| No Load Power Consumption | ≤0.1W |
| Output Cable Length | 800mm |
| Output Connector | 5.5mm × 2.1mm × 10mm barrel jack |
| Output Current | 1A (−20°C to +40°C); 0.8A (40°C to 55°C) |
| Output Ripple | 200mV |
| Output Voltage | 12V DC |
| Plug Standard | British Standard (BS) |
| Protection Features | Overcurrent, overvoltage, short circuit |
| Rated Output Power | 12W |
| Surge Protection Common Mode | ±4kV |
| Surge Protection Differential Mode | ±2kV |
| Transformation Efficiency | ≥82.96% |
| Working Temperature | −20°C to +40°C (full load); 40°C to 55°C (80% load) |
| Camera Body Style | Desktop plug-in adapter |
| Dimensions | 74.8mm × 34.8mm × 28.0mm |
