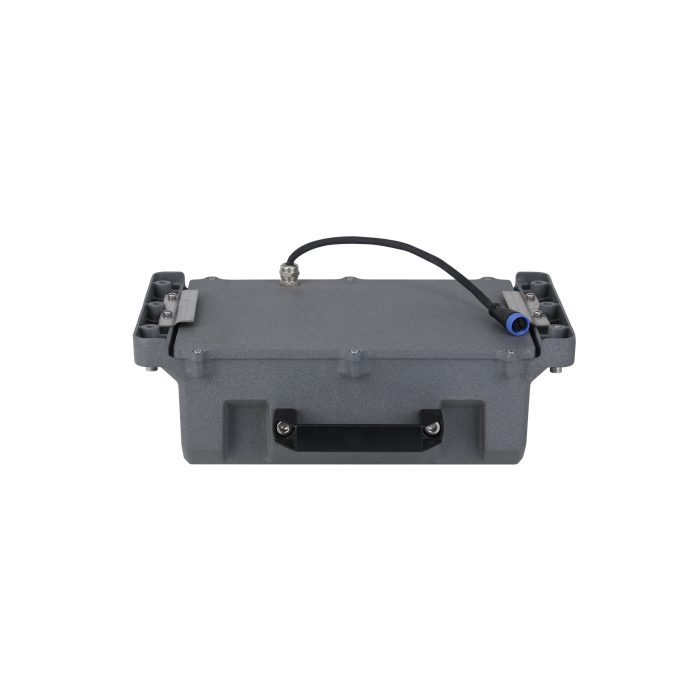

Dahua Integrated Solar Battery Box for Wall Mount Installation.
Dahua Integrated Solar Battery Box for Wall Mount Installation. Die-cast aluminium enclosure rated IP66, designed to house and weather-protect lithium...
Dahua Integrated Solar Battery Box for Wall Mount Installation. Die-cast aluminium enclosure rated IP66, designed to house and weather-protect lithium batteries used in Dahua integrated solar power supply systems. Compatible with Dahua solar power units including the PFM364L-D1, PFM363L-D1, and PFM363L-SD1. Supplied with one S5.0L wrench and six M6x30 screws.
Contact 0345 863 9750 for availability
SKU:
DH-PFM374-L45
Click to copy
✔ Copied!
Color
Grey
Click to copy
✔ Copied!
Product Details
Dahua Integrated Solar Battery Box for Wall Mount Installation. Die-cast aluminium enclosure rated IP66, designed to house and weather-protect lithium batteries used in Dahua integrated solar power supply systems. Compatible with Dahua solar power units including the PFM364L-D1, PFM363L-D1, and PFM363L-SD1. Supplied with one S5.0L wrench and six M6x30 screws.
| Manufacturer | Dahua |
|---|---|
| Compatible Devices | DH-PFM364L-D1,DH-PFM363L-D1,DH-PFM363L-SD1 |
| Gross Weight Kg | 4.4 |
| Included Accessories | 1x S5.0L Wrench,6x M6x30 Screws |
| Inner Dimensions Mm | 282.0 x 209.0 x 98.5 |
| Installation Method | Wall mount |
| Material | Die casting aluminium |
| Net Weight Kg | 3.2 |
| Outer Dimensions Mm | 359.8 x 268.7 x 116.0 |
| Packaging Dimensions Mm | 459 x 349 x 209 |
| Regulatory Compliance | CE,UKCA,RoHS,WEEE |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | 0°C to 40°C |
| Operating Humidity | <95% RH |
| Storage Humidity | <95% RH |
| Ingress Protection | IP66 |
