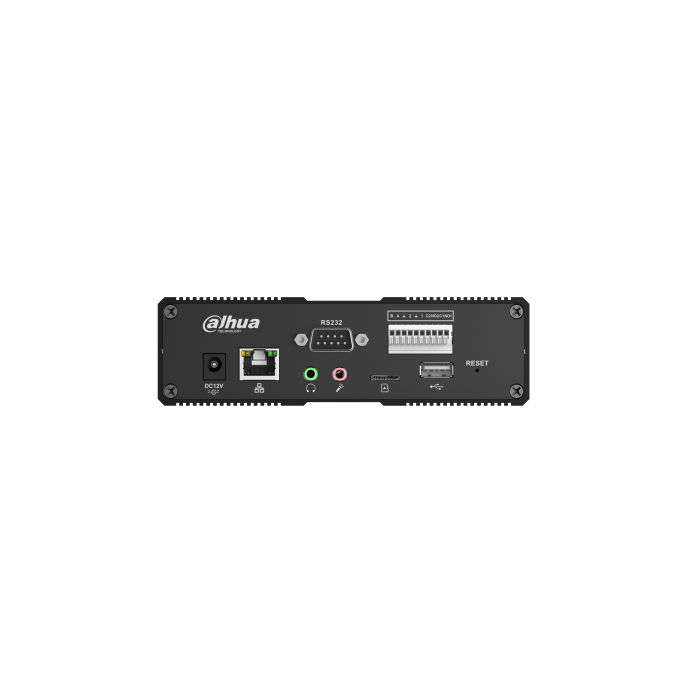

Dahua 4K Single Channel Distributed Encoding Box supporting HDMI and DisplayPort video capture inputs.
Dahua 4K Single Channel Distributed Encoding Box supporting HDMI and DisplayPort video capture inputs. Encodes up to 4K resolution using H.265 or H.26...
Dahua 4K Single Channel Distributed Encoding Box supporting HDMI and DisplayPort video capture inputs. Encodes up to 4K resolution using H.265 or H.264 compression and streams over IP network via RTSP protocol. Supports redundant power input via PoE or 12V DC, with one HDMI loop output and one HDMI monitoring output.
Contact 0345 863 9750 for availability
SKU:
DHI-NEB0105HI-4K
Click to copy
✔ Copied!
Product Details
Dahua 4K Single Channel Distributed Encoding Box supporting HDMI and DisplayPort video capture inputs. Encodes up to 4K resolution using H.265 or H.264 compression and streams over IP network via RTSP protocol. Supports redundant power input via PoE or 12V DC, with one HDMI loop output and one HDMI monitoring output.
| Manufacturer | Dahua |
|---|---|
| Camera Power Supply | DC 12V 2.0A or PoE (redundant) |
| Alarm IO | 2 in / 2 out |
| Audio Encoding | G.711a |
| Audio Input | 1x HDMI/DP embedded, 1x 3.5mm jack |
| Audio Output | 1x 3.5mm earphone (reserved) |
| Compression | H.265 / H.264 (default H.264) |
| Frame Rate | 1–60fps (resolution dependent) |
| Humidity | 10%–90%, 86kPa–106kPa |
| Max Resolution | 4K (4096x2160 @ 24fps, 3840x2160 @ 30fps) |
| Network Port | 1x RJ45 10/100/1000M self-adaptive Ethernet |
| Operating System | Embedded Linux |
| Power Consumption | ≤10W |
| Processor | High-performance industrial embedded microprocessor |
| Protocols | TCP/IP, RTP, RTSP, HTTP, TCP, UDP, DHCP, NTP, ONVIF, RTMP |
| Serial Ports | 1x RS232 (DB9), 1x RS485 |
| Stream Type | Composite stream, video stream |
| USB | 1x USB 2.0 |
| Video Inputs | 1x HDMI 1.4 (DVI compatible with adaptor), 1x DisplayPort |
| Video Outputs | 1x HDMI 2.0, 1x HDMI loop output |
| Dimensions | 45mm x 153.8mm x 100mm (H x D x W) |
| Operating Temperature | -10°C to +55°C |
