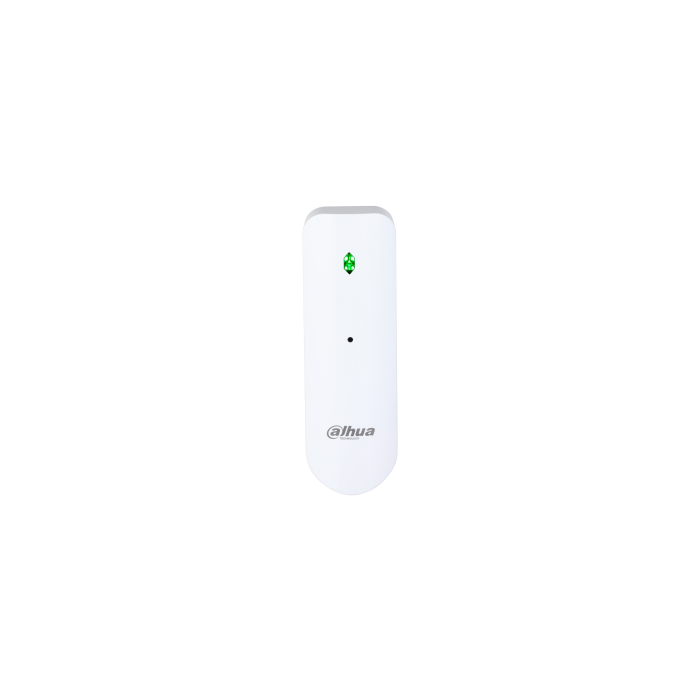

Dahua Wireless Glass Break Detector.
Dahua Wireless Glass Break Detector. Detects breakage across multiple glass types including tempered, double-glazed, laminated, wired, plate and float...
Dahua Wireless Glass Break Detector. Detects breakage across multiple glass types including tempered, double-glazed, laminated, wired, plate and float glass using dual low and high frequency sound detection with false alarm reduction algorithms. Communicates via two-way AES128-encrypted 868MHz wireless with frequency hopping, covering up to 1,600m, and includes two external wired detector inputs. Powered by a single CR123A battery with up to 3 years battery life.
Contact 0345 863 9750 for availability
SKU:
DHI-ARD512-W2(868)
Click to copy
✔ Copied!
Product Details
Dahua Wireless Glass Break Detector. Detects breakage across multiple glass types including tempered, double-glazed, laminated, wired, plate and float glass using dual low and high frequency sound detection with false alarm reduction algorithms. Communicates via two-way AES128-encrypted 868MHz wireless with frequency hopping, covering up to 1,600m, and includes two external wired detector inputs. Powered by a single CR123A battery with up to 3 years battery life.
| Manufacturer | Dahua |
|---|---|
| Alarm Current | 50mA |
| Alarm Inputs | 2 (NO/NC) |
| Anti Corrosion | Basic protection |
| Battery Life | 3 years (external input NO); 1 year (both external sensors enabled, NC type) |
| Certifications | CE |
| Communication | Two-way |
| Communication Distance | 1,600m (5,249ft) |
| Detection Range | Max 9m (29.53ft) |
| Detection Type | Acoustic glass break (dual low and high frequency) |
| Encryption | AES128 |
| Frequency Hopping | Yes |
| Glass Size Range | 0.3m x 0.3m to 3m x 3m |
| Glass Thickness Range | 2.4mm to 6.4mm |
| Glass Types Supported | Tempered, double-glazed, laminated, wired, plate, float |
| Installation | Surface mount |
| LED Indicator | 1x green alarm indicator |
| Low Battery Detection | Yes |
| Max Power Consumption | 150mW |
| Microphone | Highly-sensitive omnidirectional |
| Operating Current | 45uA |
| Power Supply | 1x CR123A battery |
| Remote Update | Cloud update with automatic recovery |
| Scenario | Indoor |
| Tamper | Yes |
| Test Mode | Yes |
| Transmit Power | Max 25mW EIRP |
| Wireless Frequency | 868.0MHz to 868.6MHz |
| Casing Material | PC and ABS |
| Dimensions | 107.8mm x 34.5mm x 24.8mm |
| Net Weight | 45g |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10% to 90% RH |
