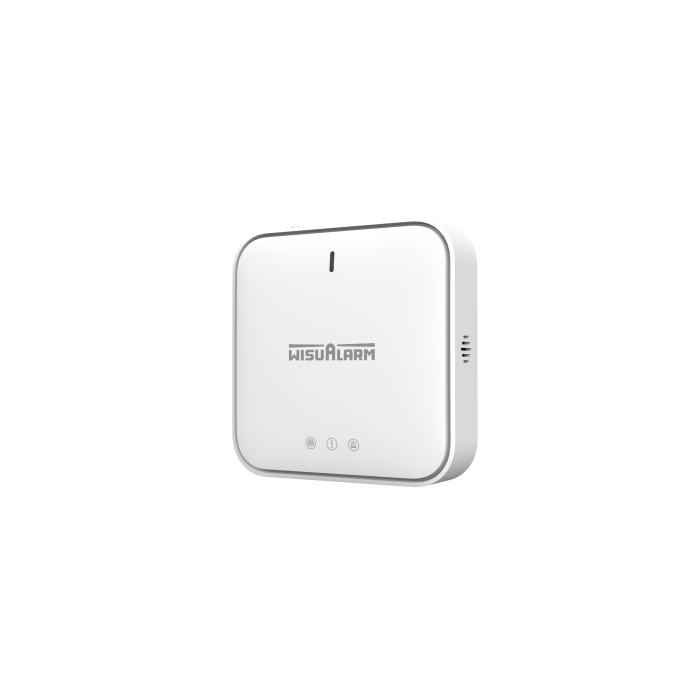

Dahua WisuLink Wireless Gateway.
Dahua WisuLink Wireless Gateway. Supports up to 24 WisuLink wireless interconnected devices via 868MHz or 925MHz radio, with dual Ethernet and 2.4GHz ...
Dahua WisuLink Wireless Gateway. Supports up to 24 WisuLink wireless interconnected devices via 868MHz or 925MHz radio, with dual Ethernet and 2.4GHz Wi-Fi (IEEE 802.11b/g/n) connectivity. Features four LED status indicators (Power, Fault, Alarm, Internet), visual and audible alarm output at 70dB, OTA firmware upgrades, and can be wall-mounted or used free-standing.
Contact 0345 863 9750 for availability
SKU:
DHI-HY-GW01A
Click to copy
✔ Copied!
Color
White
Click to copy
✔ Copied!
Product Details
Dahua WisuLink Wireless Gateway. Supports up to 24 WisuLink wireless interconnected devices via 868MHz or 925MHz radio, with dual Ethernet and 2.4GHz Wi-Fi (IEEE 802.11b/g/n) connectivity. Features four LED status indicators (Power, Fault, Alarm, Internet), visual and audible alarm output at 70dB, OTA firmware upgrades, and can be wall-mounted or used free-standing.
| Manufacturer | Dahua |
|---|---|
| Alarm Mode | Visual and audible |
| Alarm Volume | 70dB |
| App | Wisualarm (Android and iOS) |
| Casing | ABS |
| Certifications | CE, UKCA, PSTI, RCM, FCC |
| Compliance Standard | EN 62368-1:2014 + A11:2017 |
| Connectivity | Ethernet and Wi-Fi |
| Installation | Wall mount or free-standing |
| LED Indicators | 4 |
| Max Connected Devices | 24 |
| Operating Frequency | 868MHz / 925MHz |
| Ota Upgrade | true |
| Power Supply | 5V / 1A |
| WIFI Frequency | 2.4GHz (incompatible with 5GHz) |
| WIFI Protocol | IEEE 802.11b/g/n |
| WIFI Transmission Range | 50m (164ft) |
| Dimensions | 78.2mm x 78.2mm x 22.9mm |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | ≤95% RH (non-condensing) |
