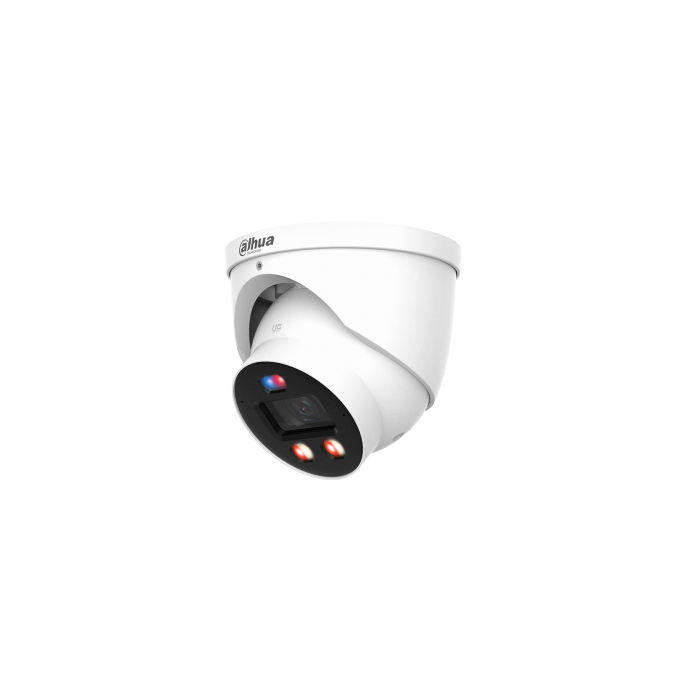

Dahua 8MP WizSense Eyeball Camera with 2.8mm Fixed Lens.
Dahua 8MP WizSense Eyeball Camera with 2.8mm Fixed Lens. Features a 1/1.8" CMOS sensor outputting 3840×2160 at up to 30fps, with built-in multi-core I...
Dahua 8MP WizSense Eyeball Camera with 2.8mm Fixed Lens. Features a 1/1.8" CMOS sensor outputting 3840×2160 at up to 30fps, with built-in multi-core IR and warm light illumination up to 30m, H.265 compression, SMD 4.0 with human and vehicle classification, perimeter protection (intrusion, tripwire, stay and loitering detection), active siren and light deterrence, built-in dual microphone and speaker, and IP67 weatherproofing. Powered via 12VDC or PoE.
In Stock
| Store | Stock |
|---|---|
| PureTech UK | 50+ |
| PureTech Derby | 9 |
SKU:
DH-IPC-HDW3849HP-AS-PV-0280B-PRO
Click to copy
✔ Copied!
Product Details
Dahua 8MP WizSense Eyeball Camera with 2.8mm Fixed Lens. Features a 1/1.8" CMOS sensor outputting 3840×2160 at up to 30fps, with built-in multi-core IR and warm light illumination up to 30m, H.265 compression, SMD 4.0 with human and vehicle classification, perimeter protection (intrusion, tripwire, stay and loitering detection), active siren and light deterrence, built-in dual microphone and speaker, and IP67 weatherproofing. Powered via 12VDC or PoE.
| Manufacturer | Dahua |
|---|---|
| Active Deterrence | Yes — siren and red/blue light alarm |
| AI Coding | AI H.265 / AI H.264 / Smart H.265+ / Smart H.264+ |
| Alarm Input | 1 channel (wet contact, 5mA, 3–5VDC) |
| Alarm Output | 1 channel (wet contact, 300mA, 12VDC) |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Audio Input | 1 channel RCA + built-in dual microphone |
| Audio Output | 1 channel RCA + built-in speaker (max 2W, 110dB at 10cm) |
| Certifications | CE-LVD (EN 62368-1), CE-EMC (2014/30/EU) |
| Close Focus Distance | 3.2m |
| Day Night | Auto (ICR) / Colour / B/W |
| Field Of View | H: 109°, V: 59°, D: 131° |
| Illuminator Control | Auto / Manual |
| Illuminator Number | 2 (Multi-core IR + warm light) |
| Image Sensor | 1/1.8" CMOS |
| Interoperability | ONVIF Profile S, G, T, M; CGI |
| Lens | 2.8mm |
| Lens Mount | M16 |
| Lens Type | Fixed-focal |
| Max Aperture | F1.0 |
| Max Frame Rate | 25/30fps @ 3840×2160 |
| Max Resolution | 3840 × 2160 |
| Min Illumination Bw | 0.0002 lux @ F1.0 (30IRE) |
| Min Illumination Colour | 0.0004 lux @ F1.0 (30IRE) |
| Network Port | RJ-45 (10/100 Base-T) |
| Noise Reduction | 3D NR |
| Power Consumption Basic | 4.1W (12VDC) / 6W (PoE) |
| Power Consumption Max | 8.2W (12VDC) / 10W (PoE) |
| Power Supply | 12VDC / PoE |
| Smart Features | SMD 4.0, IVS Perimeter Protection (Intrusion, Tripwire, Stay Detection, Loitering Detection), Face Detection, AcuPick, AI SSA, Smart Search |
| Storage | Micro SD card up to 512GB, FTP, SFTP, NAS |
| Stream Capability | 3 streams |
| Two Way Audio | Yes |
| Video Compression | H.265 / H.264 / H.264H / H.264B / MJPEG |
| Warm Light Distance | 30m |
| WDR | 120dB |
| Camera Body Style | Eyeball |
| Casing Material | Metal |
| Dimensions | Ø122.0mm × 116.1mm |
| Net Weight | 0.8kg |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% |
| Built-in Audio | Two Way Talk |
| Image Sensor | 1/1.8" CMOS |
| Lens Size | 2.8mm |
| Lighting Type | TiOC |
| Camera Power Supply | 12 VDC; PoE |
| Ingress Protection | IP67 |
| IR Length | 30m |
| Resolution | 8MP |
