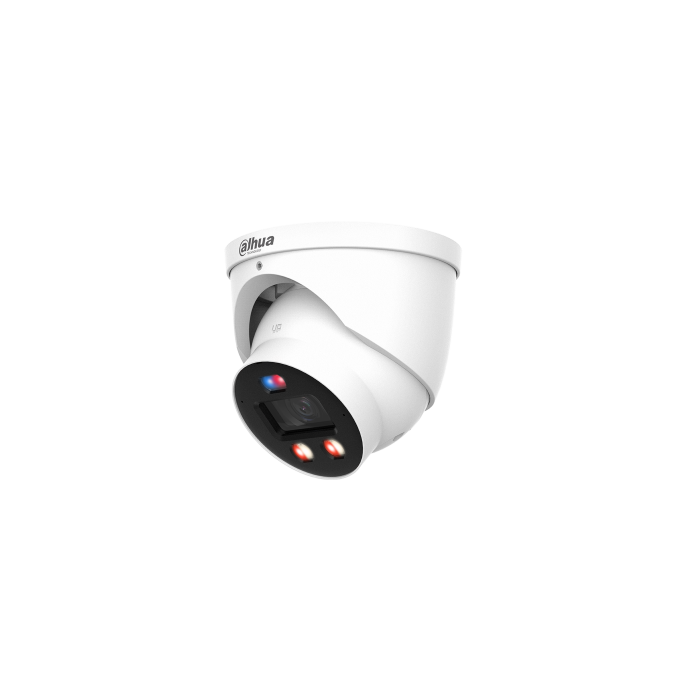

Dahua 8MP WizSense Eyeball Camera with 2.8mm Fixed Lens.
Dahua 8MP WizSense Eyeball Camera with 2.8mm Fixed Lens. Features a 1/1.8" CMOS sensor with dual illumination (30m IR and 30m warm light), H.265 compr...
Dahua 8MP WizSense Eyeball Camera with 2.8mm Fixed Lens. Features a 1/1.8" CMOS sensor with dual illumination (30m IR and 30m warm light), H.265 compression, and AI-powered perimeter protection including intrusion and tripwire detection with vehicle and human classification. Supports SMD 4.0, active sound and light deterrence, built-in dual microphone, speaker, and PoE or 12VDC power.
In Stock
| Store | Stock |
|---|---|
| PureTech UK | 100+ |
| PureTech Derby | 9 |
SKU:
DH-IPC-HDW3849HP-AS-PV-0280B-PRO-Grey
Click to copy
✔ Copied!
Product Details
Dahua 8MP WizSense Eyeball Camera with 2.8mm Fixed Lens. Features a 1/1.8" CMOS sensor with dual illumination (30m IR and 30m warm light), H.265 compression, and AI-powered perimeter protection including intrusion and tripwire detection with vehicle and human classification. Supports SMD 4.0, active sound and light deterrence, built-in dual microphone, speaker, and PoE or 12VDC power.
| Manufacturer | Dahua |
|---|---|
| Active Deterrence | true |
| Alarm Input | 1 channel (wet contact, 5mA, 3–5VDC) |
| Alarm Output | 1 channel (wet contact, 300mA, 12VDC) |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Audio Input | 1 channel RCA + built-in dual microphone |
| Audio Output | 1 channel RCA + built-in speaker (max 2W, 110dB @ 10cm) |
| Certifications | CE-LVD (EN 62368-1), CE-EMC (2014/30/EU) |
| Close Focus Distance | 3.2m (2.8mm lens) |
| Compression | H.265 / H.264 / AI H.265 / AI H.264 / Smart H.265+ / Smart H.264+ |
| Day Night | Auto (ICR) / Color / B/W |
| Field Of View 2 8MM | H: 109°, V: 59°, D: 131° |
| Illuminator Number | 2 (Multi-core IR + warm light) |
| Image Sensor | 1/1.8" CMOS |
| Interoperability | ONVIF Profile S, G, T, M; CGI |
| Lens Mount | M16 |
| Lens Type | Fixed-focal |
| Max Aperture | F1.0 |
| Max Frame Rate | 25/30fps @ 8MP |
| Max Resolution | 3840 x 2160 |
| Min Illumination Bw | 0.0002 lux @ F1.0 (30IRE) |
| Min Illumination Color | 0.0004 lux @ F1.0 (30IRE) |
| Network Port | RJ-45 (10/100 Base-T) |
| Noise Reduction | 3D NR |
| Power Consumption Basic | 4.1W (12VDC) / 6W (PoE) |
| Power Consumption Max | 8.2W (12VDC) / 10W (PoE) |
| Power Supply | 12VDC / PoE |
| RAM | 1GB |
| ROM | 256MB |
| Smart Features | SMD 4.0, IVS perimeter protection (intrusion, tripwire, stay detection, loitering detection), face detection, AcuPick, AI SSA, active sound and light deterrence |
| Storage | Micro SD card up to 512GB, FTP, SFTP, NAS |
| Stream Capability | 3 streams |
| Two Way Audio | true |
| Warm Light Distance | 30m |
| WDR | 120dB |
| Camera Body Style | Eyeball |
| Casing Material | Metal |
| Dimensions | Ø122.0mm × 116.1mm |
| Net Weight | 0.8kg |
| Gross Weight | 1.0kg |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% |
| Lens Size | 2.8mm |
| Ingress Protection | IP67 |
| IR Length | 30m |
| Resolution | 8MP |
