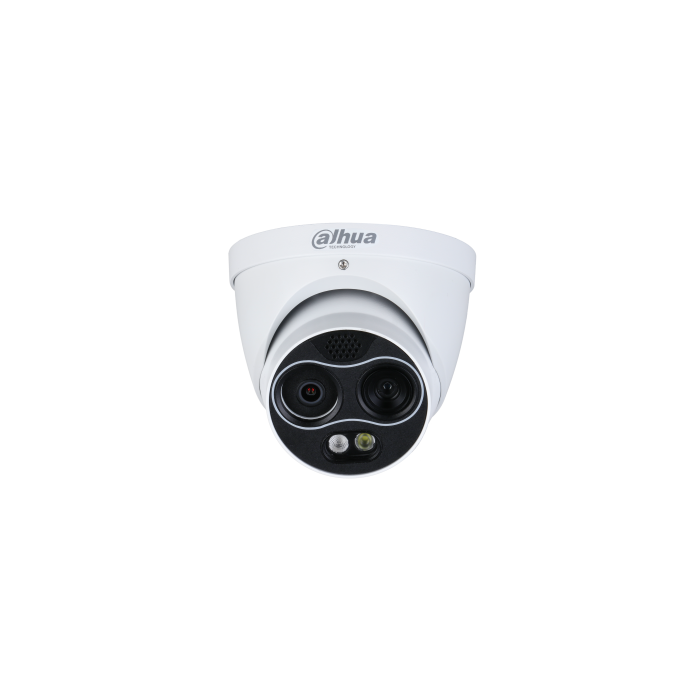

Dahua Thermal Camera with Vanadium Oxide Uncooled Detector.
Dahua Thermal Camera with Vanadium Oxide Uncooled Detector. Features 4MP progressive scan CMOS, hybrid fusion technology, and comprehensive detection ...
Dahua Thermal Camera with Vanadium Oxide Uncooled Detector. Features 4MP progressive scan CMOS, hybrid fusion technology, and comprehensive detection capabilities including fire, smoking, tripwire, and intrusion detection. Built-in white light illuminator and speaker for audio-visual alerts.
Contact 0345 863 9750 for availability
SKU:
DHI-TPC-DF1241-B7F8-DW-S2
Click to copy
✔ Copied!
Product Details
Dahua Thermal Camera with Vanadium Oxide Uncooled Detector. Features 4MP progressive scan CMOS, hybrid fusion technology, and comprehensive detection capabilities including fire, smoking, tripwire, and intrusion detection. Built-in white light illuminator and speaker for audio-visual alerts.
| Manufacturer | Dahua |
|---|---|
| Lens Size | 7MM/8MM |
| Lighting Type | Built-in IR illuminator and white light |
| Camera Body Style | Turret |
| Lens Type | Thermal |
| Lens | 8mm |
| Effective Pixels | 2336 × 1752 |
| Resolution | 4MP |
| Image Sensor | Progressive scan CMOS |
| Minimum Illumination | Colour: 0.05 lux Black & white: 0.005 lux 0 lux (IR on) |
| White Balance | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural |
| Ingress Protection | IP67 |
| Camera Power Supply | 12 VDC ± 20% / PoE |
| Camera Power Consumption | Basic: <4.5 W (12 VDC, LED off); 4.8 W (PoE) Max: <10.1 W (12 VDC, LED on, heater on); 12.3 W (PoE) |
| Built-in Audio | Built-in speaker |
| Day / Night | Auto (ICR); Colour; B/W |
| Dimensions | 122 × 122 × 112mm |
| Detection Features | fire detection, smoking detection, tripwire, intrusion, call detection, target filtering |
| Detector Type | Vanadium oxide uncooled focal plane |
| Technology | Hybrid fusion |
