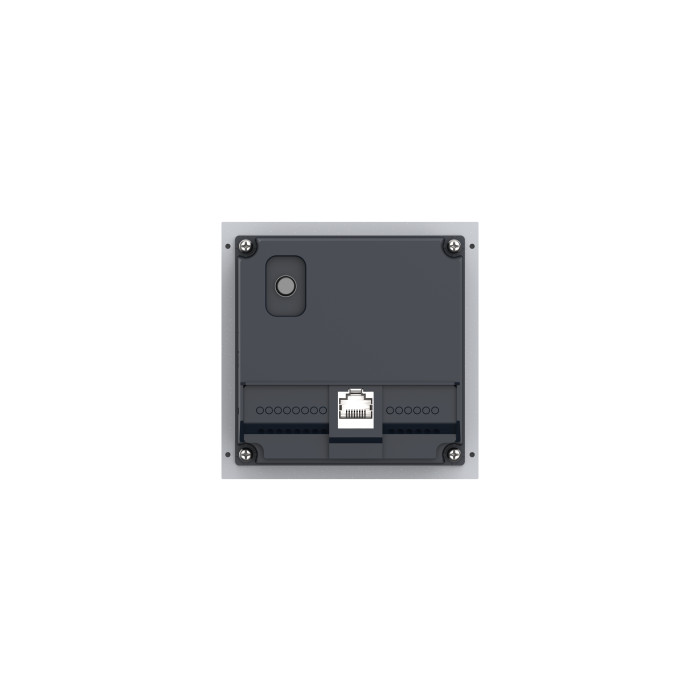

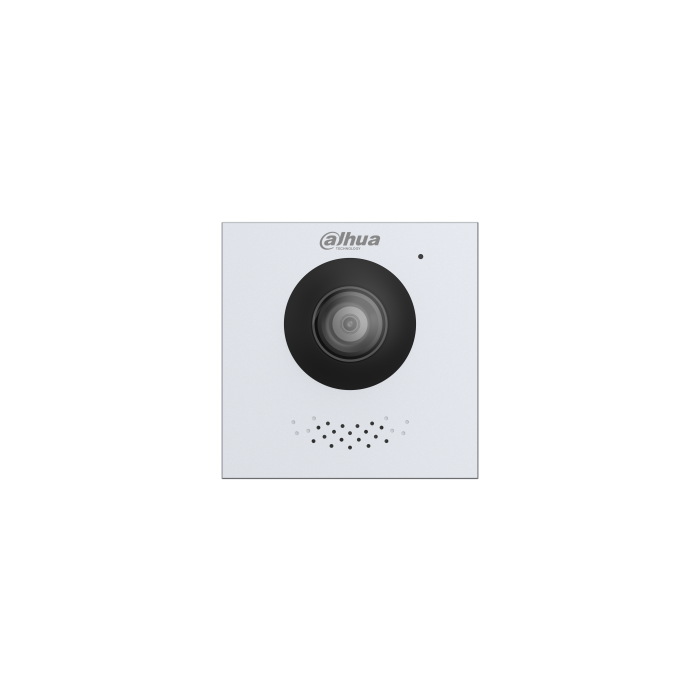

Dahua 2MP Modular Apartment Door Station with 168.6° Wide Angle Camera.
Dahua 2MP Modular Apartment Door Station with 168.6° Wide Angle Camera. Features a 1/2.9" 2MP CMOS sensor, 120dB WDR, H.265/H.264 compression, and two...
Dahua 2MP Modular Apartment Door Station with 168.6° Wide Angle Camera. Features a 1/2.9" 2MP CMOS sensor, 120dB WDR, H.265/H.264 compression, and two-way audio with echo suppression. Supports digital 2-wire communication, remote unlock via mobile app, card/fingerprint access (with optional modules), and is rated IP65 and IK07 for outdoor use.
In Stock
| Store | Stock |
|---|---|
| PureTech UK | 16 |
| PureTech Derby | Available to order |
SKU:
DHI-VTO4202F-P-S3
Click to copy
✔ Copied!
Product Details
Dahua 2MP Modular Apartment Door Station with 168.6° Wide Angle Camera. Features a 1/2.9" 2MP CMOS sensor, 120dB WDR, H.265/H.264 compression, and two-way audio with echo suppression. Supports digital 2-wire communication, remote unlock via mobile app, card/fingerprint access (with optional modules), and is rated IP65 and IK07 for outdoor use.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 |
| Image Sensor | 1/2.9" 2MP CMOS |
| Camera Body Style | Modular Door Station |
| Alarm Output | 1 |
| Audio Bit Rate | 16 KHz, 16 Bit |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Enhancement | Echo suppression / digital noise reduction |
| Audio Input | 1 channel |
| Audio Mode | Two-way audio |
| Audio Output | Built-in speaker |
| Resolution | 2MP |
| Card Capacity | 3000 |
| Casing Material | Aluminum (anodized front panel) |
| Certifications | CE |
| Communication Mode | Digital 2-wire |
| Compression | H.265; H.264 |
| Day Night | Auto(ICR)/Color/B/W |
| Dimensions Mm | 100.0 × 100.0 × 49.4 mm |
| Door Status Detection | 1 |
| Exit Button | 1 |
| Field Of View | H: 168.6°; V: 87.1°; D: 176.7° |
| Frame Rate | 25 fps |
| Gross Weight Kg | 0.43 |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Interoperability | ONVIF; CGI |
| Light Compensation | Auto IR |
| Lock Control | 1 |
| Main Stream Resolution | 720p; WVGA; D1; CIF |
| Mobile App | true |
| Network Port | 1 × RJ-45, 10/100 Mbps |
| Network Protocols | IPv4; RTSP; UDP; DNS; P2P; UPnP; RTP; TCP; SIP |
| Noise Reduction | 3D NR |
| Operating Altitude | 0–3000 m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH non-condensing |
| Operating System | Embedded Linux |
| Operating Temperature | -30°C to +60°C |
| Power Consumption | ≤4W standby; ≤5W working |
| Power Output | 12 V / 600 mA (1 port) |
| Power Supply | 48 VDC 1A via Dahua 2-wire switch (max 50m); PoE 802.3af/at |
| RS485 | 1 |
| Storage | Micro SD card (up to 256 GB) |
| Storage Humidity | 30%–75% RH non-condensing |
| Storage Temperature | 0°C to +40°C |
| Sub Stream Resolution | 1080p; WVGA; D1; QVGA; CIF |
| Tamper Alarm | true |
| Unlock Mode | Remote |
| Video Bit Rate | 256 Kbps to 8 Mbps |
| WDR | 120 dB |
| Web Configuration | true |
