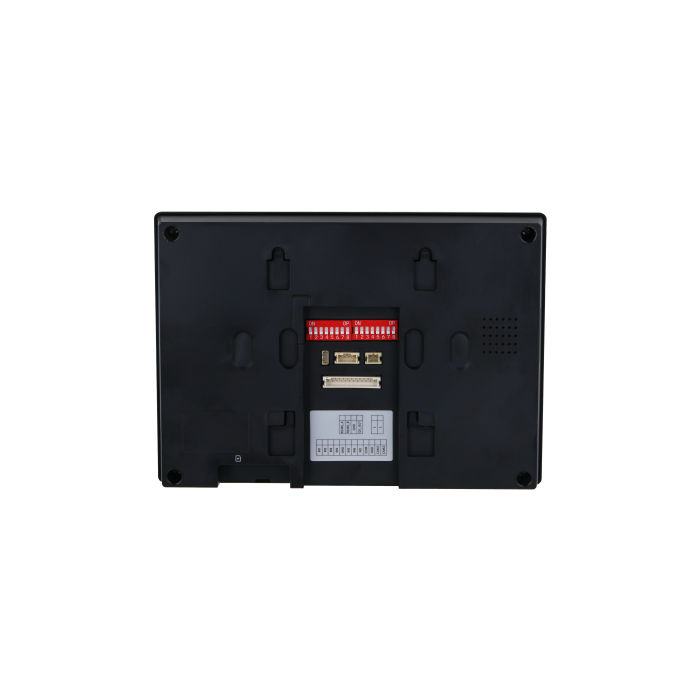

Dahua 7-inch TFT Capacitive Touchscreen Wi-Fi Hybrid Indoor Monitor (Black).
Dahua 7-inch TFT Capacitive Touchscreen Wi-Fi Hybrid Indoor Monitor (Black). Features analog 2-wire communication, video intercom with half-duplex VTO...
Dahua 7-inch TFT Capacitive Touchscreen Wi-Fi Hybrid Indoor Monitor (Black). Features analog 2-wire communication, video intercom with half-duplex VTO and full-duplex app connectivity, and supports video recording and snapshot capture via Micro SD card (up to 64GB). Includes 6-channel alarm input, 1-channel alarm output, built-in Wi-Fi (2.4GHz), RS-485 port, and a 12V/200mA power output.
Contact 0345 863 9750 for availability
SKU:
DHI-VTH2123GB-W-S2-Black
Click to copy
✔ Copied!
Product Details
Dahua 7-inch TFT Capacitive Touchscreen Wi-Fi Hybrid Indoor Monitor (Black). Features analog 2-wire communication, video intercom with half-duplex VTO and full-duplex app connectivity, and supports video recording and snapshot capture via Micro SD card (up to 64GB). Includes 6-channel alarm input, 1-channel alarm output, built-in Wi-Fi (2.4GHz), RS-485 port, and a 12V/200mA power output.
| Manufacturer | Dahua |
|---|---|
| Alarm Input | 6 channels |
| Alarm Output | 1 channel |
| Anti Corrosion Level | Basic Protection |
| Audio Bit Rate | 16 KHz, 16 Bit |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Enhancement | Echo suppression / digital noise reduction |
| Audio Mode | Half-duplex with VTO; Full-duplex with app |
| Camera Compatibility | HDCVI cameras or IP cameras |
| Casing Material | PC + ABS |
| Certifications | CE |
| Communication Mode | Analog 2-wire |
| Dimensions Mm | 134.6 x 189.6 x 24.0 |
| Display Size | 7 inch |
| Display Type | TFT Capacitive Touchscreen |
| Dnd Mode | Yes |
| Door Bell | Yes (via alarm input port) |
| Gross Weight G | 622 |
| Installation | Surface Mount |
| Leave Video | Yes (SD card required) |
| Network Protocol | UDP; TCP; IPv4; DNS |
| Number Of Extensions Apartment | 2 |
| Number Of Extensions Villa | 4 |
| Operating Altitude | 0–3000m |
| Operating Environment | Indoor |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -10°C to +55°C |
| OS | Embedded operating system |
| Power Adapter | Optional |
| Power Consumption Standby | ≤4W |
| Power Consumption Working | ≤10W |
| Power Output | 12V, 200mA |
| Power Supply | 2-wire Controller |
| Processor | Embedded Processor |
| RS485 | 1 |
| Screen Resolution | 1024 x 600 |
| Storage | Micro SD card (up to 64GB, not included) |
| Storage Humidity | 30%–75% |
| Storage Temperature | 0°C to 40°C |
| WIFI | IEEE 802.11b/g/n, 2.4GHz |
