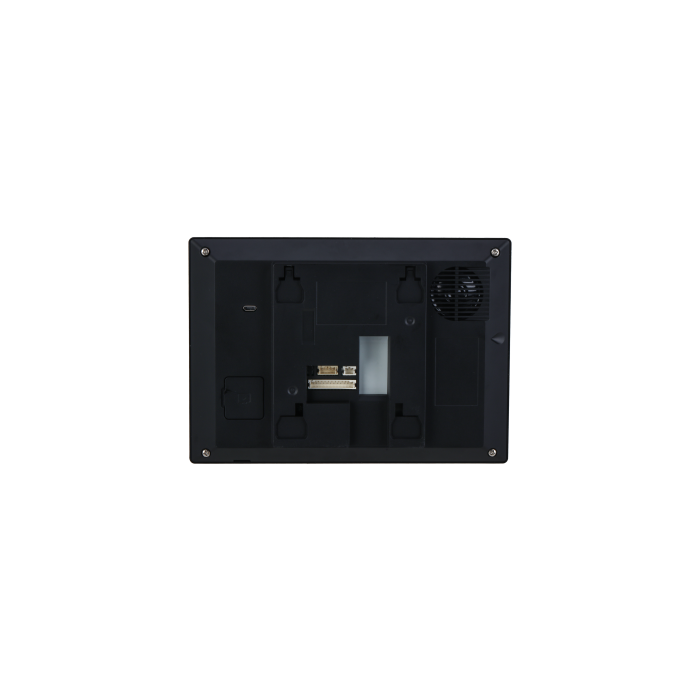

Dahua Android Indoor Monitor with 7-inch Capacitive Touchscreen (1024x600).
Dahua Android Indoor Monitor with 7-inch Capacitive Touchscreen (1024x600). Runs Android 8.1 with a user-friendly UI and supports both Ethernet and Wi...
Dahua Android Indoor Monitor with 7-inch Capacitive Touchscreen (1024x600). Runs Android 8.1 with a user-friendly UI and supports both Ethernet and Wi-Fi (IEEE 802.11b/g/n, 2.4GHz) connectivity. Features two-way audio with echo suppression, H.264 video compression, up to 8 alarm inputs, and micro SD card storage up to 256GB.
Contact 0345 863 9750 for availability
SKU:
DHI-VTH5321GB-W-Black
Click to copy
✔ Copied!
Product Details
Dahua Android Indoor Monitor with 7-inch Capacitive Touchscreen (1024x600). Runs Android 8.1 with a user-friendly UI and supports both Ethernet and Wi-Fi (IEEE 802.11b/g/n, 2.4GHz) connectivity. Features two-way audio with echo suppression, H.264 video compression, up to 8 alarm inputs, and micro SD card storage up to 256GB.
| Manufacturer | Dahua |
|---|---|
| Alarm Inputs | 8 |
| Alarm Outputs | 1 |
| Audio Bit Rate | 16KHz, 16-bit |
| Audio Compression | PCM |
| Audio Enhancement | Echo suppression / DNR |
| Audio Input | 1 omnidirectional microphone |
| Audio Mode | Two-way audio |
| Audio Output | Built-in 1W speaker |
| Resolution | 1024x600 |
| Casing | PC+ABS |
| Certifications | CE, FCC |
| Colour Options | White / Black |
| Communication Mode | Full digital |
| Dimensions | 189.6mm x 134.6mm x 26mm |
| Dnd Mode | Yes |
| Elevator Control | Yes |
| Ethernet | 1x 10M/100M |
| Extension Numbers Apartment | 4 extension monitors |
| Extension Numbers Villa | 9 extension monitors |
| Extension Numbers WIFI | 1 main monitor, 2 extension monitors |
| Gross Weight | 490g |
| Installation | Surface mount |
| Max Transmission Power | ≤20 dBm @ 2400–2483.5 MHz |
| Net Weight | 385g |
| Network Protocol | IPv4, TCP, SIP, UDP, RTSP |
| Operating Altitude | Less than 3000m |
| Operating Humidity | 10%RH–95%RH (non-condensing) |
| Operating System | Android 8.1 |
| Operating Temperature | -10°C to +55°C |
| Power Consumption | ≤1.5W standby, ≤7W working |
| Power Output | 12V / 100mA |
| Power Supply | 12V DC 1A or PoE (802.3af) |
| RS485 | 1 |
| Screen Size | 7 inch TFT LCD |
| Screen Type | Capacitive touchscreen |
| SOS | Yes |
| Storage | Micro SD, up to 256GB |
| Video Compression | H.264 |
| WIFI | Yes |
| Wireless Frequency | 2.4GHz |
| Wireless Standard | IEEE 802.11b/g/n |
