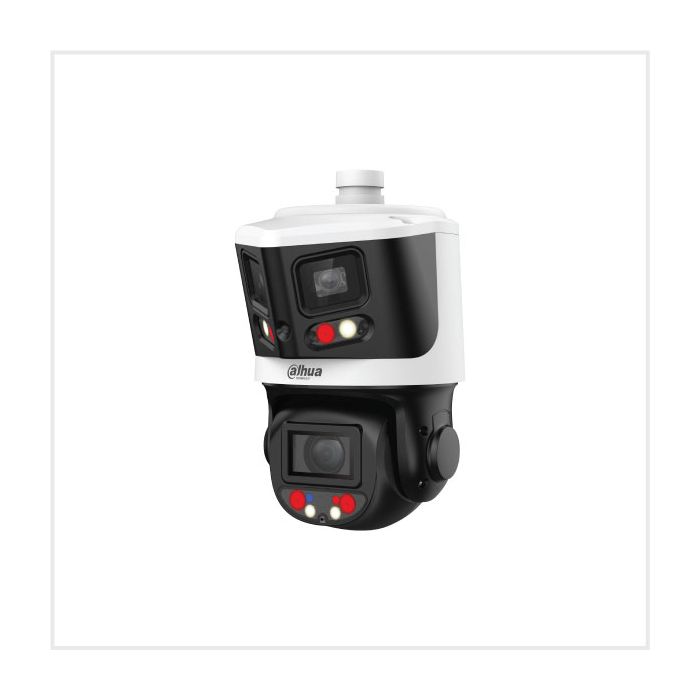

Dahua 8MP and 4MP 10x TiOC IP Panoramic and PTZ Camera
Panorama: Outputs 180° wide angle splicing image
Deatil: 1/2.8" 4 Megapixel STARVIS™ CMOS
10x optical zoom
Starlight technology
Max. 25/30fps @ ...
Panorama: Outputs 180° wide angle splicing image
Deatil: 1/2.8" 4 Megapixel STARVIS™ CMOS
10x optical zoom
Starlight technology
Max. 25/30fps @ 8M
IR distance up to 70m
Warm light illumination distance up to 30m
Active deterrence
Auto Tracking Lite
Perimeter protection
Face detection
SMD 4.0
IP66
Smart dual light
In Stock
| Store | Stock |
|---|---|
| PureTech HQ Portsmouth | 9 |
| PureTech Security Derby | 2 |
SKU
DH-SDT3E410-8P-MB-A-PV1-0280
👀 48 people have viewed this product in the last 7 days.
Product Details
Designed with more lens than the conventional PTZ camera, the X-Spans series camera captures an expansive view, producing wide, vivid images. It has the combined power of the panoramic and detail camera in its structure and is highly cost-effectve, greatly reducing the installation cost of security systems. It also leverages its two cameras to perform smart tracking, and has an independent mode that allows you to separately use each camera.
| Manufacturer | Dahua |
|---|---|
| Camera Body Style | PTZ |
| Resolution | 8MP/4K |
| Colour | White |
| Lens | Overview channel: 2.8 mm; Detail channel: 4 mm–40 mm |
| Lens Type | Fixed |
| Camera Power Consumption | Basic: 12 W; Max: 25 W |
| Camera Power Supply | 12 VDC, 3 A ± 10% PoE+(802.3at) |
| Image Sensor | Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS |
| Effective Pixels | Overview channel: 5376 × 1520; Detail channel: 2560 × 1440 |
| Day / Night | Overview channel: Auto; Colour; B/W; Detail channel: Auto; Colour; B/W; Electronic |
| Working Enviroment | –30 to 60°C |
| Ingress Protection | IP66 |
| Dimensions | 140.3 × 181.7 × 238.8mm |
| Max IR Length | 70m (IR); 30m (Warm light) |
| LED Length | Up to 30m |
| Camera Type | IP |
| Lighting Type | TiOC |
| Lens Size | 2.8mm |
| Built-in Audio | 1CH Audio In |
| IR Length | Up to 70m |
