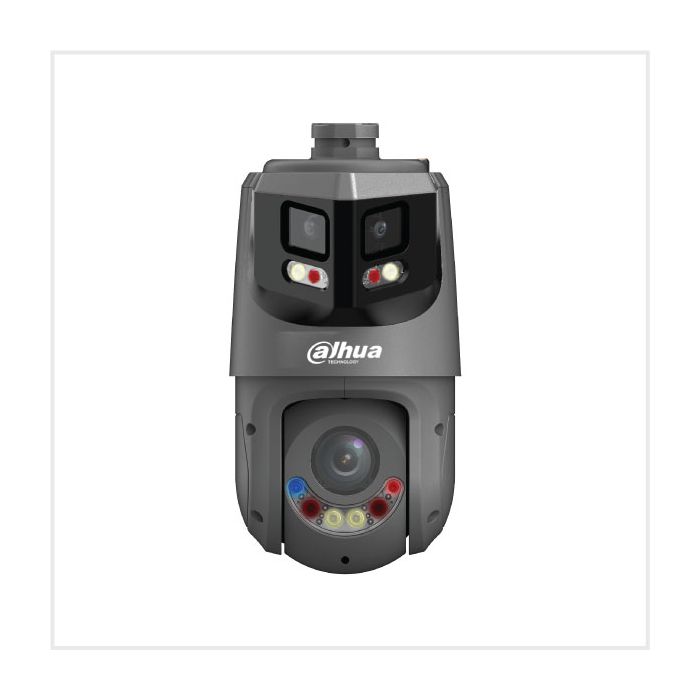

Dahua 8MP and 4MP TiOC IP Panoramic and 25x PTZ Camera
Overview channel: Outputs 180° wide angle splicing image
Detail channel: 1/2.8" 4 Megapixel STARVIS™ CMOS
25x optical zoom
Max. 25/30 fps @ 8M
I...
Overview channel: Outputs 180° wide angle splicing image
Detail channel: 1/2.8" 4 Megapixel STARVIS™ CMOS
25x optical zoom
Max. 25/30 fps @ 8M
IR distance up to 100m
Smart tracking
Perimeter protection
Active deterrence
Smart dual light+
Check Lead Times
SKU
DH-SDT4E425-8P-GB-APV1-0280-S2-G
👀 65 people have viewed this product in the last 7 days.
Product Details
Designed with more lens than the conventional PTZ camera, the X-Spans series camera captures an expansive view, producing wide, vivid images. It has the combined power of the panoramic and detail camera in its structure and is highly cost-effective, greatly reducing the installation cost of security systems. It also leverages its two cameras to perform smart tracking, and has an independent mode that allows you to separately use each camera.
| Manufacturer | Dahua |
|---|---|
| Camera Body Style | PTZ |
| Resolution | 4MP |
| Colour | Grey |
| Lens | 2.8mm |
| Lens Type | Fixed |
| Camera Power Supply | 12 VDC, 3 A ± 10%;PoE (802.3at) |
| Image Sensor | Overview channel: 1/2.7" CMOS; Detail channel: 1/2.8" CMOS |
| Effective Pixels | Overview channel: 4096 (H) × 1860 (V); Detail channel: 2560 (H) × 1440 (V) |
| Day / Night | Overview channel: Auto; Colour; B/W; Electronic Detail channel: Auto; Colour; B/W; Electronic |
| Working Enviroment | –40 to 65°C |
| Ingress Protection | IP66 |
| Dimensions | 194.2 × 160 × 311mm |
| Max IR Length | 100m |
| LED Length | Up to 50m |
| Camera Type | IP |
| Lighting Type | TiOC |
| Lens Size | 2.8mm |
| Built-in Audio | 1CH Audio In |
| IR Length | Up to 100m |
