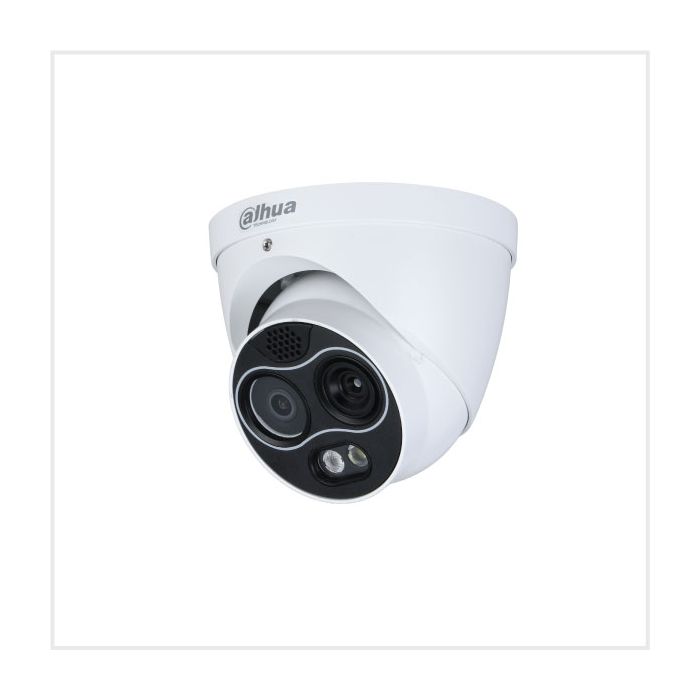

Dahua Radiometry Eyeball Camera
Vanadium oxide uncooled focal plane detector.
4Megapixel progressive scan CMOS.
AI functions: heat detection, tripwire, human/vehicle classificati...
- Vanadium oxide uncooled focal plane detector.
- 4Megapixel progressive scan CMOS.
- AI functions: heat detection, tripwire, human/vehicle classification, smoking detection, and call detection.
- Remote auxiliary management.
- Dual image fusion (visible and thermal channels).
- Wide input voltage 12 VDC ± 20%, and PoE.
- IP67 rated.
In Stock
SKU
DHI-TPC-DF1241-TB7F8-DW-S2
👀 15 people have viewed this product in the last 7 days.
Product Details
Featuring thermal and visible channels, Eureka series thermal network camera offers various AI functions such as tripwire, intrusion, call detection, smoking detection, and heat detection. It can be used in short-distance monitoring scenes such as perimeter protection and heat monitoring, which provides an all-in-one video surveillance solution for small and medium scenes. The camera is widely applied in factory, parking lot, villa, and more.
| Manufacturer | Dahua |
|---|---|
| Camera Body Style | Thermal |
| Colour | White |
| Lens | 7mm |
| Lens Type | Thermal |
| Camera Power Consumption | Basic: <4.5 W (12 VDC, LED off); 4.8 W (PoE) Max: <10.1 W (12 VDC, LED on, heater on); 12.3 W (PoE) |
| Camera Power Supply | 12 VDC, 1.2 A ± 20%; PoE |
| Image Sensor | 1/2.7'' CMOS |
| Effective Pixels | 2336 × 1752 |
| Minimum Illumination | Colour: 0.05 lux Black & white: 0.005 lux 0 lux (IR on) |
| Day / Night | Auto (ICR); Colour; B/W |
| White Balance | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural |
| Working Enviroment | -30 to 60°C |
| Ingress Protection | IP67 |
| Dimensions | 122 × 122 × 112mm |
| Max IR Length | 30m |
| LED Length | Up to 30m |
| Camera Type | IP |
| Lighting Type | IR/THERMAL |
| Lens Size | 7MM/8MM |
| Built-in Audio | Audio In/out |
| IR Length | Up to 30m |
