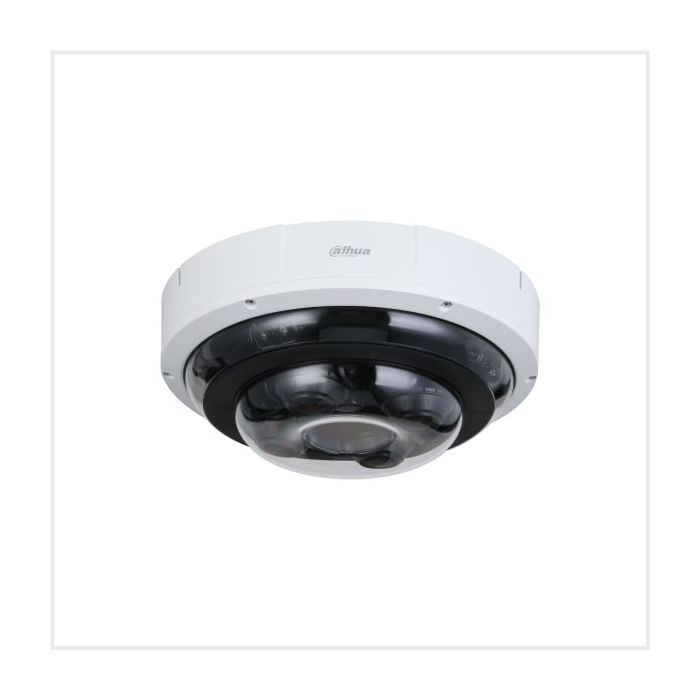

Dahua 4 × 5MP 4-Directional Panoramic Dome WizMind Network Camera
Four 5-MP 1/2.7" CMOS image sensor, low illuminance, high image definition.
4-channel stream output, and each channel can output max. 5 MP (2592 × ...
- Four 5-MP 1/2.7" CMOS image sensor, low illuminance, high image definition.
- 4-channel stream output, and each channel can output max. 5 MP (2592 × 1944) @25/30 fps.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- The intelligent functions of 4 channels can be enabled at the same time, including face detection, IVS, and people counting.
- Intelligent detection: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, and parking detection.
- FlexStream: The 4 channels of images can be viewed in a defined channel with 1 channel stream. That is the multiple images can be displayed in 1 channel.
- Web5.0 interface design, which is friendly to users, and easy for operation.
- Built-in IR LED illuminator, and the max. illumination distance is 30 m.
- Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.
- 12 VDC/PoE power supply; 12 VDC power output, and max. current 165mA; easy for installation.
- IP67 and IK10 protection.
- Anti-corrosion protection (optional).
Check Lead Times
SKU
DH-IPC-PDBW82041P-B360-E4-2812-S2
Product Details
Designed to be highly flexible, the Non-Splicing Camera performs surveillance in multiple directions for wide scenes through its adjustable lens, making it ideal for use with multiple cameras. It is easy to install and supports a variety of functions, such as face detection, people counting and perimeter protection. The camera is widely used in scenes such as warehouses, transit stations and campuses.
| Manufacturer | Dahua |
|---|---|
| Camera Type | Panoramic |
| Resolution | 5MP |
| Lens Type | Motorised |
| Camera Power Consumption | Basic power consumption: 7.4 W (12 VDC); 9.3W (PoE) Max. power consumption (basic + WDR + IR intensity+ lens switch+ power output): 21.3W (12 VDC); 24.7 W (PoE+) |
| Camera Power Supply | 12 VDC/PoE+( 802.3at ) |
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | 0.005 lux@F1.7 (Color,30 IRE); 0.0005 lux@F1.7 (B/W,30 IRE); 0 lux (Illuminator on) |
| Day / Night | Auto(ICR)/Colour/B/W |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Working Enviroment | -30 to +60°C |
| Ingress Protection | IP67 |
| Dimensions | 111.3 mm × Φ286.1 mm |
