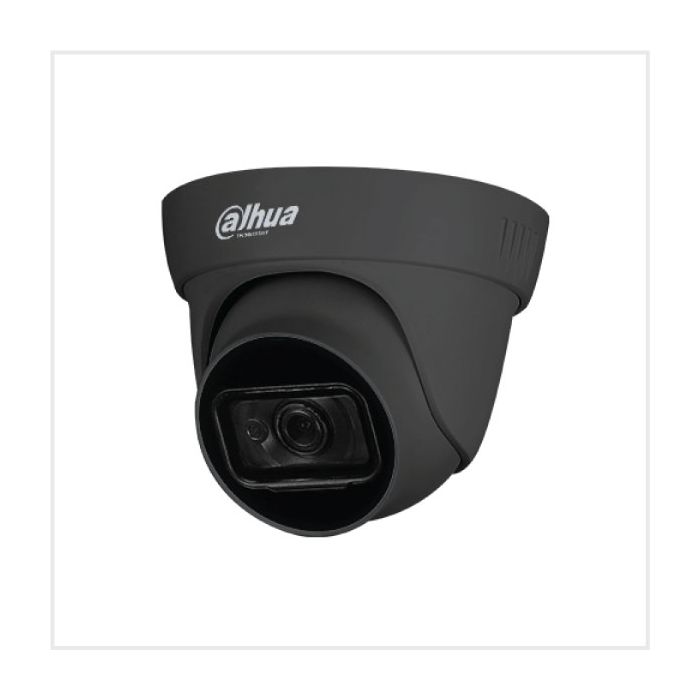

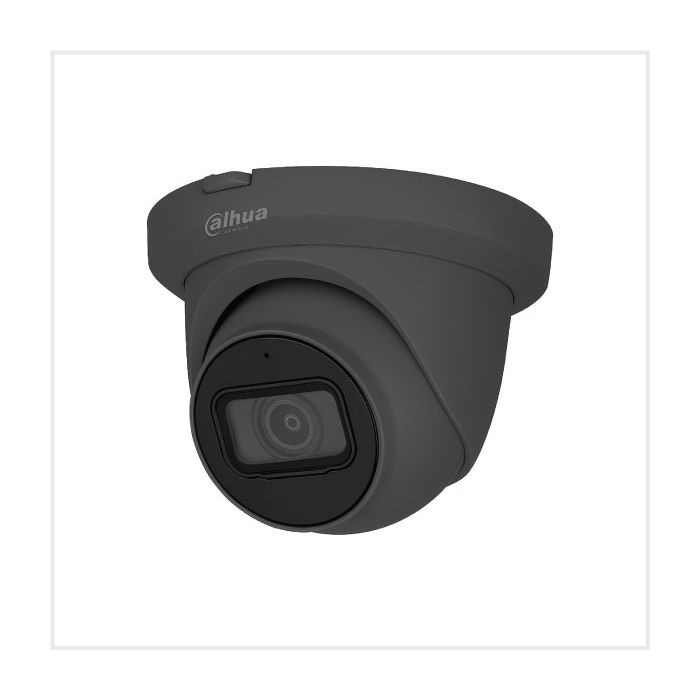

Dahua 5MP HDCVI IR Camera
- Max. 20fps@5MP
- Built-in mic (-A)
- CVI/CVBS/AHD/TVI switchable
- Fixed lens 3.6mm / 2.8mm
- Max. IR length 30m, Smart IR
- IP67, DC12V
Contact 0345 863 9750 for availability
SKU
DH-HAC-HDW1500TLMQP-A-0280B-S2-G
Click to copy
✔ Copied!
👀 40 people have viewed this product in the last 7 days.
Product Details
Experience superior 5MP video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The Lite series 5MP HDCVI camera features a compact design and offers a high quality image with rich details at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.
| Manufacturer | Dahua |
|---|---|
| Camera Body Style | Turret |
| Resolution | 5MP |
| Colour | Grey |
| Lens | 2.8mm |
| Lens Type | Fixed |
| Camera Power Consumption | Max 3.7W (12V DC, IR on) |
| Camera Power Supply | 12V±30% DC |
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 2592 (H)×1944 (V), 5MP |
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
| Day / Night | Auto switch by ICR |
| White Balance | Auto; manual |
| Working Enviroment | -40°C to +60°C |
| Ingress Protection | IP67 |
| Dimensions | Φ97.0 × 85.8mm |
| Max IR Length | 30m |
| Camera Type | Analogue |
| Lighting Type | IR |
| Lens Size | 2.8mm |
| Built-in Audio | Built-in MIC |
