Dahua Alarm Box
Supports through RS485 access to the back-end storage
Supports 16ch Alarm In/6ch Alarm Out interface
Supports 2-bit DIP switch (0/1) to determine ...
- Supports through RS485 access to the back-end storage
- Supports 16ch Alarm In/6ch Alarm Out interface
- Supports 2-bit DIP switch (0/1) to determine the different alarm box access; Max support 4 alarm boxes having access to the back-end storage device
- Supports universal 12V power supply; Supports using a separate adapter or through 1 to 2 power cable using the DVR adapter to supply the alarm box with power

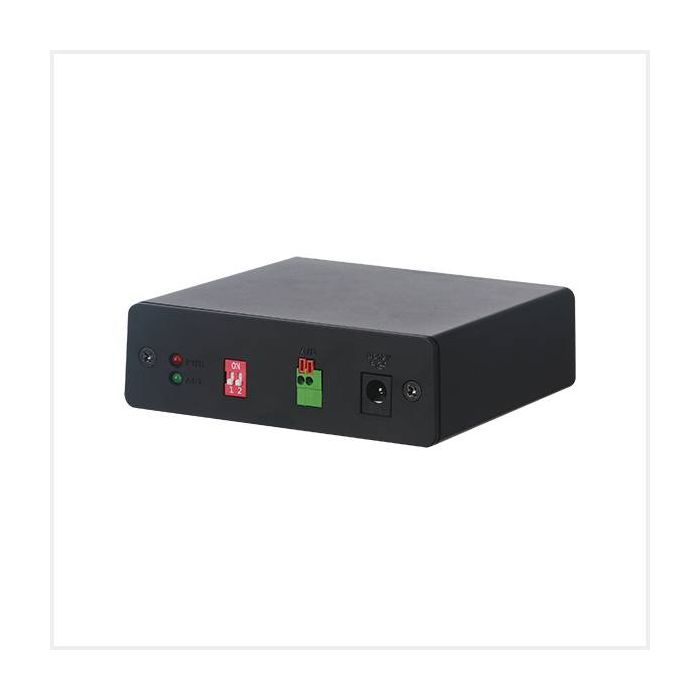

- The front panel has a power indicator (PWR) which maintains lightening when the device is powered up; The front panel has a signal communication indicator (ACT) which lights up every 1 second when the communication is established between the alarm box and DVR equipment.
- The linked alarm can be configured on the alarm input and output interface when the communication is established between the DVR device and the alarm box.
Check Lead Times
SKU
DHI-ARB1606
Product Details
| Manufacturer | Dahua |
|---|---|
| Alarm Input | 16 |
| Alarm Output | 6 |
| Power | 12V/1A (or use 1 to 2 power cable to use the DVR power) |
| Dimensions | 97.68 × 90.3 × 33mm |
