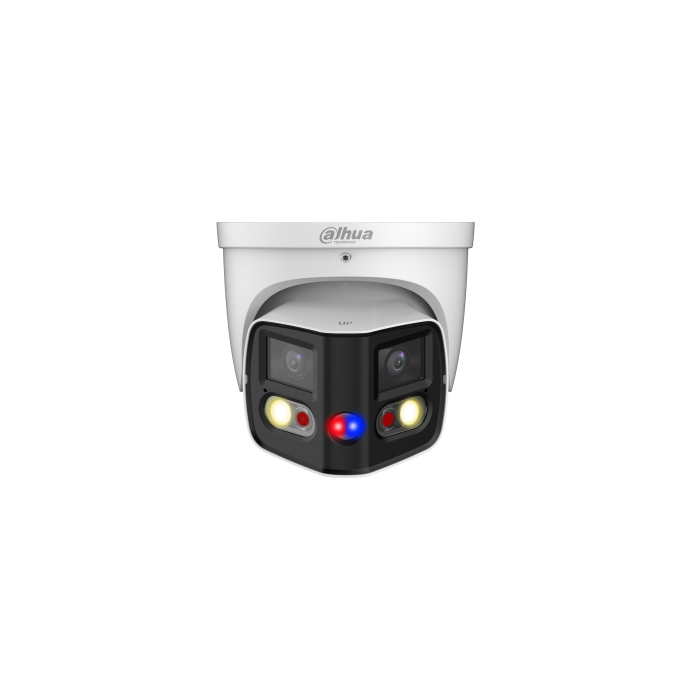

2x4MP TiOC Duo Splicing Fixed-focal Eyeball WizSense Network Camera BLACK
Outputs 180° wide angle splicing image.
Outputs max. 8 MP (4096 × 1860)@20 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in ...
Outputs 180° wide angle splicing image.
Outputs max. 8 MP (4096 × 1860)@20 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
Sound and light alarm (red and blue lights)
EPTZ: Enlarge and track the targets of intelligent alarms.
SMD 4.0.
One-tap arming/disarming through alarm input
In Stock
| Store | Stock |
|---|---|
| PureTech HQ Portsmouth | 50+ |
| PureTech Security Derby | Available to order |
SKU
DH-IPC-PDW3849P-A180-E2-AS-PV-0280B-Black
Click to copy
✔ Copied!
Product Details
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
| Manufacturer | Dahua |
|---|---|
| Camera Body Style | Turret |
| Resolution | 4MP |
| Colour | Black |
| Lens | 2.8mm |
| Lens Type | Fixed |
| Camera Power Consumption | Basic: 3.95 W (12 VDC); 4.95 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE) |
| Camera Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Image Sensor | Dual 1/2.7" CMOS |
| Effective Pixels | 4096 × 1860 |
| Minimum Illumination | 0.005 lux@F1.4 (Colour, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day / Night | Auto(ICR)/Colour/B/W |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Working Enviroment | -40 to 60°C |
| Ingress Protection | IP67 |
| Dimensions | Φ122 × 135.2 mm |
| Max IR Length | 25m |
| Camera Type | IP |
| Lighting Type | TiOC |
| Lens Size | 2.8mm |
| Built-in Audio | Two Way Talk |
| IR Length | Up to 25m |
