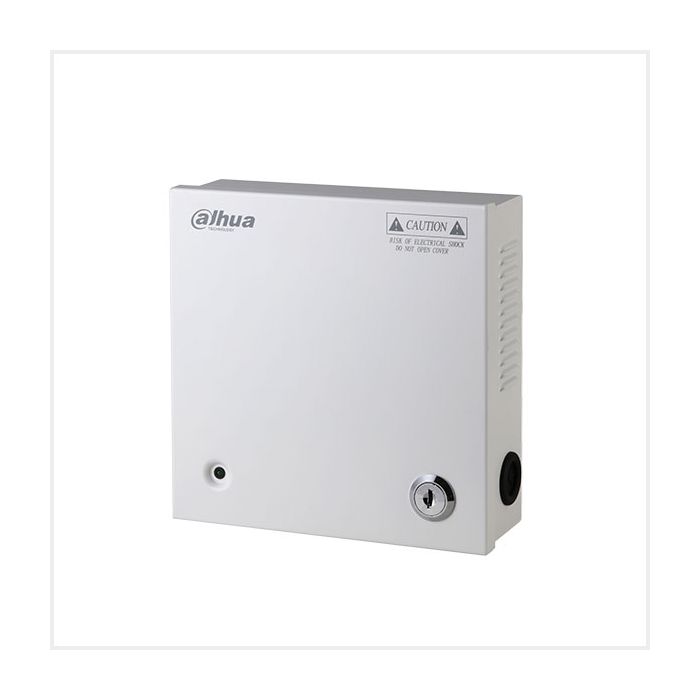

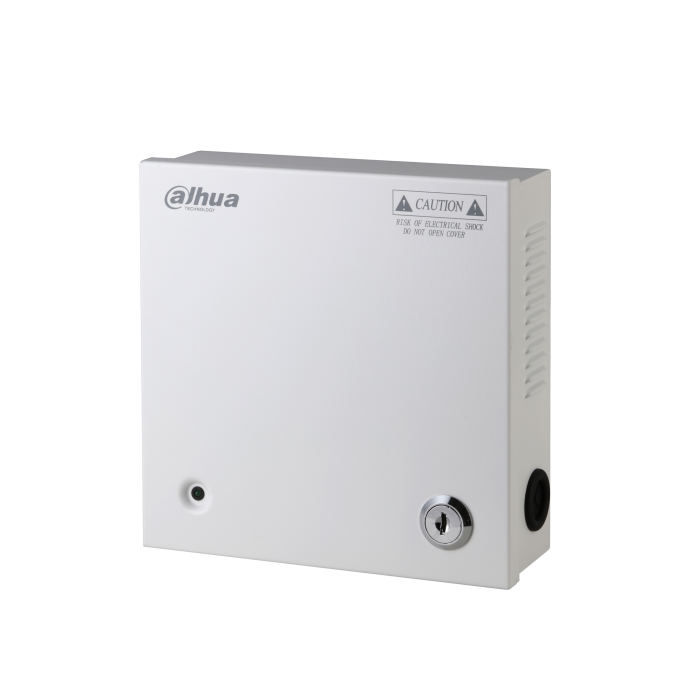

Dahua 5-Channel CCTV Distributed Power Supply Box with DC12V output.
Dahua 5-Channel CCTV Distributed Power Supply Box with DC12V output. Accepts wide-range AC input (90–264V) and delivers up to 4A total across five ind...
Dahua 5-Channel CCTV Distributed Power Supply Box with DC12V output. Accepts wide-range AC input (90–264V) and delivers up to 4A total across five individually fused 12VDC outputs (max 2.5A per channel). Wall-mounted metal enclosure with key lock, individual LED indicators per channel, and built-in overload, over-current, and over-voltage protection.
Contact 0345 863 9750 for availability
SKU:
DH-PFM340-5CH
Click to copy
✔ Copied!
Color
White
Click to copy
✔ Copied!
Product Details
Dahua 5-Channel CCTV Distributed Power Supply Box with DC12V output. Accepts wide-range AC input (90–264V) and delivers up to 4A total across five individually fused 12VDC outputs (max 2.5A per channel). Wall-mounted metal enclosure with key lock, individual LED indicators per channel, and built-in overload, over-current, and over-voltage protection.
| Manufacturer | Dahua |
|---|---|
| Certifications | CE (EN55032, EN55020),FCC Part 15 Class B,ISED ICES-003 Issue 6 |
| Dimensions Mm | 165 x 165 x 50 |
| Efficiency | 84% |
| Enclosure | Metal with key lock |
| ESD Air Discharge | 8000V |
| ESD Contact Discharge | 6000V |
| Input Voltage | AC 90–264V |
| Installation | Wall mount |
| LED Indicators | Individual per channel |
| Max Output Per Channel | 2.5A (fuse protected) |
| Max Total Output Current | 4A |
| No Load Power Consumption | <0.5W |
| Output Channels | 5 |
| Output Protection | 5 replaceable fuses, max 2.5A per output |
| Output Voltage | DC 12V (-3% to +7%) |
| Power Switch | Internal ON/OFF |
| Surge Protection Line To Ground | 4000V |
| Surge Protection Line To Line | 2000V |
| Typical Load Per Channel | 0.8A |
| Weight Kg | 0.85 |
| Working Humidity | <90% RH |
| Working Temperature | -20°C to +45°C |
| Dimensions | 165 x 165 x 50 mm |
| Operating Temperature | -20 to 45°C |
