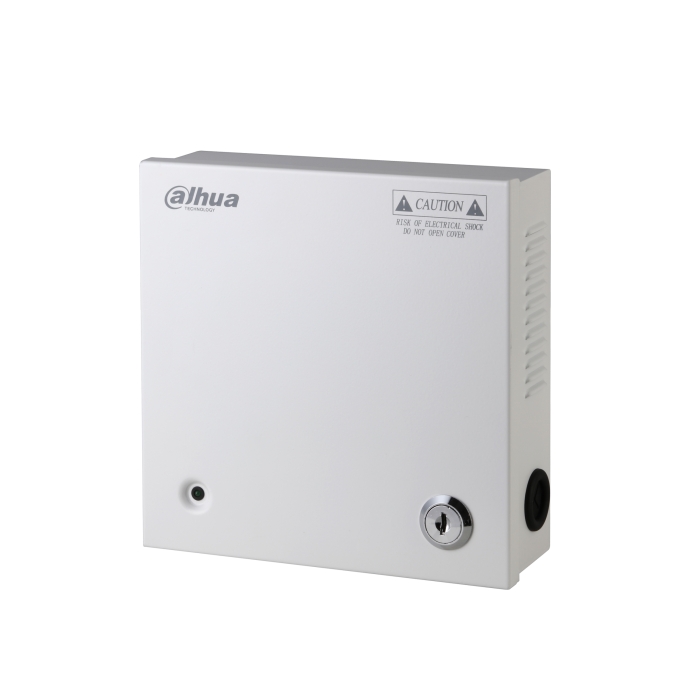

Dahua 9-Channel CCTV Distributed Power Supply Box with DC 12V outputs and wide-range AC input.
Dahua 9-Channel CCTV Distributed Power Supply Box with DC 12V outputs and wide-range AC input. Provides 9 individually fused 12VDC outputs (max 5A tot...
Dahua 9-Channel CCTV Distributed Power Supply Box with DC 12V outputs and wide-range AC input. Provides 9 individually fused 12VDC outputs (max 5A total, 2.5A per channel) with per-channel LED indicators and a lockable metal enclosure. Supports wide voltage input AC 90–264V with surge, ESD, overload, and over-voltage protection; wall-mount installation.
Contact 0345 863 9750 for availability
SKU:
DH-PFM341-9CH
Click to copy
✔ Copied!
Color
White
Click to copy
✔ Copied!
Product Details
Dahua 9-Channel CCTV Distributed Power Supply Box with DC 12V outputs and wide-range AC input. Provides 9 individually fused 12VDC outputs (max 5A total, 2.5A per channel) with per-channel LED indicators and a lockable metal enclosure. Supports wide voltage input AC 90–264V with surge, ESD, overload, and over-voltage protection; wall-mount installation.
| Manufacturer | Dahua |
|---|---|
| Certifications | CE (EN55032, EN55020), FCC Part 15 Class B, ISED ICES-003 Issue 6 |
| Dimensions Mm | 165 x 165 x 50 |
| Efficiency | 84% |
| Enclosure | Lockable metal case |
| ESD Protection | Contact discharge: 6000V; Air discharge: 8000V |
| Input Voltage | AC 90–264V |
| Installation | Wall mount |
| Internal Switch | Yes |
| LED Indicators | Individual LED per output channel |
| Max Current Per Channel | 2.5A |
| Max Total Output Current | 5A |
| No Load Power Consumption | <0.5W |
| Nominal Current Per Channel | 0.55A |
| Channels | 9 |
| Output Protection | 9 replacement fuses, max 2.5A per output |
| Output Voltage | 12VDC (-3% to +7%) |
| Surge Protection | Line to ground: 4000V; Line to line: 2000V |
| Weight Kg | 0.9 |
| Working Humidity | <90% RH |
| Working Temperature | -20°C to +45°C |
