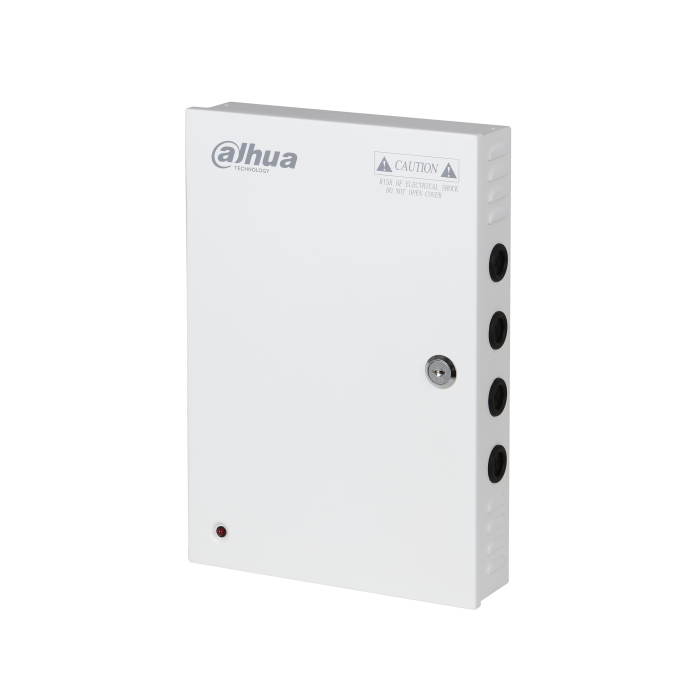

Dahua 19-Channel CCTV Distributed Power Supply Box.
Dahua 19-Channel CCTV Distributed Power Supply Box. Provides 19 individual DC12V outputs with a combined maximum output of 20A / 240W, powered from a ...
Dahua 19-Channel CCTV Distributed Power Supply Box. Provides 19 individual DC12V outputs with a combined maximum output of 20A / 240W, powered from a wide-range AC90–264V input. Each channel is fuse-protected (max 3A per output) with individual LED indicators, housed in a lockable metal wall-mount enclosure.
Contact 0345 863 9750 for availability
SKU:
DH-PFM343-19CH
Click to copy
✔ Copied!
Product Details
Dahua 19-Channel CCTV Distributed Power Supply Box. Provides 19 individual DC12V outputs with a combined maximum output of 20A / 240W, powered from a wide-range AC90–264V input. Each channel is fuse-protected (max 3A per output) with individual LED indicators, housed in a lockable metal wall-mount enclosure.
| Manufacturer | Dahua |
|---|---|
| Certifications | CE (EN55032, EN55020), FCC Part 15 Class B, ISED ICES-003 Issue 6 |
| Dimensions Mm | 315 x 215 x 53 |
| Efficiency | 87% |
| Enclosure | Lockable metal case |
| ESD Protection | Contact discharge: 6000V; Air discharge: 8000V |
| Input Voltage | AC 90–264V |
| Installation | Wall mount |
| Internal Power Switch | Yes |
| LED Output Indicator | Individual per channel |
| Max Output Current | 20A |
| Max Output Power | 240W |
| No Load Power Consumption | <0.21W |
| Output Protection | 19 replaceable fuses, max 3A per output |
| Outputs | 19 x DC12V (-3% to +7%) |
| Surge Protection | Line to ground: 4000V; Line to line: 2000V |
| Weight Kg | 2.52 |
| Working Humidity | <90% RH |
| Working Temperature | -20°C to +45°C |
