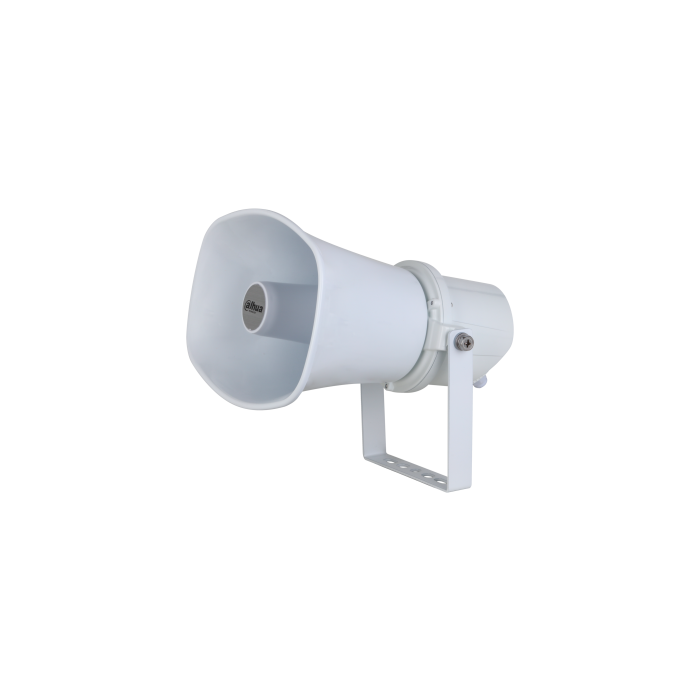

Dahua Network IP Horn Speaker with PoE+ Support.
Dahua Network IP Horn Speaker with PoE+ Support. Built from aerospace-grade aviation aluminum with IP67 and IK10 protection, delivering 15W output and...
Dahua Network IP Horn Speaker with PoE+ Support. Built from aerospace-grade aviation aluminum with IP67 and IK10 protection, delivering 15W output and a maximum sound pressure level of 108dB. Supports SIP and ONVIF protocols for intercom and audio broadcasting, with 512MB onboard storage and TF card expansion.
Contact 0345 863 9750 for availability
SKU:
DH-VCS-SH30
Click to copy
✔ Copied!
Product Details
Dahua Network IP Horn Speaker with PoE+ Support. Built from aerospace-grade aviation aluminum with IP67 and IK10 protection, delivering 15W output and a maximum sound pressure level of 108dB. Supports SIP and ONVIF protocols for intercom and audio broadcasting, with 512MB onboard storage and TF card expansion.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP67 |
| Amplifier | Built-in 15W, 8Ω |
| Audio Protocols | MP3, G.711a/u |
| Certifications | CE EMC, CE LVD |
| Coverage Pattern | H: 70°, V: 100° |
| Dimensions Mm | 228 × 170 × 250 mm |
| IK Rating | IK10 |
| Material | Aerospace-grade aviation aluminum |
| Max SPL | 108dB |
| Microphone Frequency Response | 50Hz–12kHz |
| Microphone Input | 15mV |
| Microphone Pickup Distance | ≥3m |
| Microphone Type | Built-in, one microphone switch |
| Mounting | Wall mount, pole mount |
| Net Weight Kg | 1.8 |
| Network Port | 1x RJ45 |
| Network Protocols | TCP, UDP, ARP, ICMP, IGMP, DHCP, HTTP, SIP, ONVIF |
| Power Consumption | 15W |
| Power Input | 24VDC 1A 24W; PoE IEEE 802.3at Class 4 |
| SNR | 75dB |
| Speaker Frequency Response | 250Hz–16kHz |
| Speaker Output | 15W |
| Storage | 512MB onboard, TF card expandable |
| Type | IP Horn Speaker |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 60%–95% RH, non-condensing |
