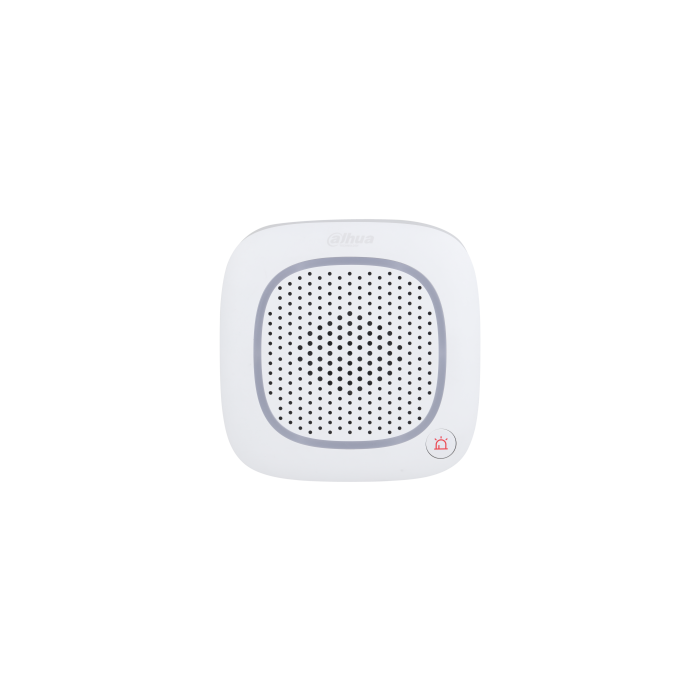

Dahua Wireless Intercom Siren with 868MHz RF Transmission.
Dahua Wireless Intercom Siren with 868MHz RF Transmission. Indoor wall-mount siren featuring two-way audio intercom via RF, high-decibel alarm (105 dB...
Dahua Wireless Intercom Siren with 868MHz RF Transmission. Indoor wall-mount siren featuring two-way audio intercom via RF, high-decibel alarm (105 dB) with multiple alert types including fire, medical, intrusion and panic. Powered by 4x CR123A batteries or 9-15VDC with up to 3 years standby life; compatible with ARC3800H series hubs only.
In Stock
| Store | Stock |
|---|---|
| PureTech UK | 20+ |
| PureTech Derby | Available to order |
SKU:
DHI-ARA14-W2(868)
Click to copy
✔ Copied!
Product Details
Dahua Wireless Intercom Siren with 868MHz RF Transmission. Indoor wall-mount siren featuring two-way audio intercom via RF, high-decibel alarm (105 dB) with multiple alert types including fire, medical, intrusion and panic. Powered by 4x CR123A batteries or 9-15VDC with up to 3 years standby life; compatible with ARC3800H series hubs only.
| Manufacturer | Dahua |
|---|---|
| Alarm Types | Fire,Medical,Intrusion,Panic |
| App Support | DMSS,DoLynk Care |
| Battery Model | CR123A |
| Buttons | Panic button,Power button |
| Buzzer | true |
| Certifications | CE,EN 50131-1:2006+A1:2009+A2:2017+A3:2020,EN 50131-4:2019,EN 50131-6:2017+A1:2021,EN 50131-5-3:2017 |
| Communication Distance Alarm | 1600 m |
| Communication Distance Intercom | 1000 m |
| Communication Mechanism | Two-way |
| Compatible Hubs | ARC3800H series |
| Dimensions Mm | 133.0 x 133.0 x 35.5 |
| Encryption | AES128 |
| Environmental Class | Class II |
| Frequency Hopping | true |
| Gross Weight G | 507 |
| Incompatible Hubs | ARC3000H,ARA43 series |
| Installation | Wall mount |
| LED Indicators | Red,Blue,Green |
| Low Battery Detection | true |
| Microphone Pickup Range | 5 m |
| Net Weight G | 377 |
| Operating Current Battery | 1.5 A (max), 20 µA (standby) at 3V |
| Operating Current DC | 0.4 A (max), 1.5 mA (standby) at 12V DC |
| Power Consumption Max | 4.5 W |
| Power Consumption Standby | 0.4 mW |
| Power Supply | 4 x CR123A battery or 9-15 VDC |
| Product Type | Wireless Intercom Siren |
| Remote Update | Cloud update |
| Scenario | Indoor |
| Security Grade | Grade 2 |
| Sound Pressure Anechoic High 1M | 91.6 dB(A) |
| Sound Pressure Anechoic Low 1M | 77.6 dB(A) |
| Sound Pressure Max | 105 dB(A) |
| Standby Time | 3 years (triggered once every 2 weeks, 120 sec alarm duration) |
| Tamper | true |
| Transmitter Power Eirp | 25 mW (limit) |
| Two Way Audio | true |
| Two Way Audio Volume | 85 dB |
| VOIP Support | SIP |
| Wireless Frequency | 865.34 MHz – 868.60 MHz |
| Casing Material | PC + ABS |
| Operating Temperature | -10 °C to +55 °C |
| Storage Temperature | -10 °C to +55 °C |
| Operating Humidity | 10% – 90% RH |
| Storage Humidity | 10% – 90% RH |
