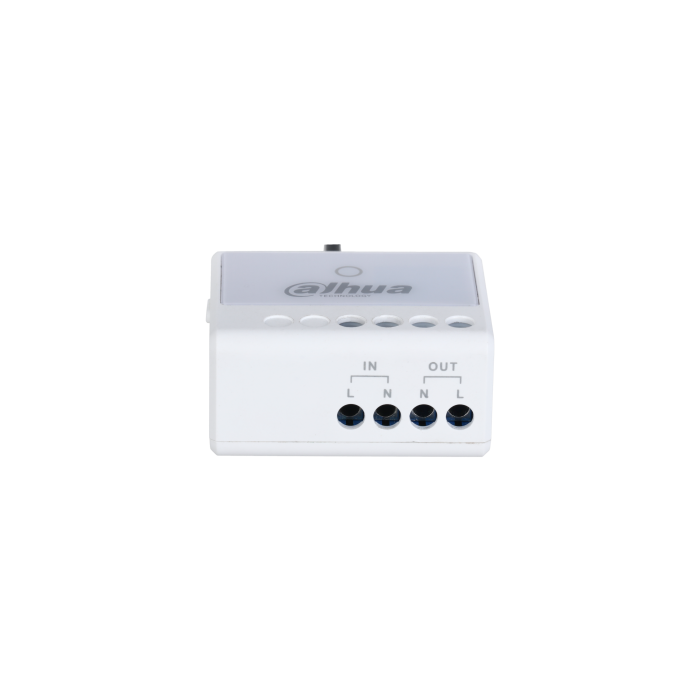

Dahua Wireless Wall Switch for remote control of 100–240 VAC powered devices.
Dahua Wireless Wall Switch for remote control of 100–240 VAC powered devices. Features a built-in relay (NO/NC, max 13A) with two-way 868MHz RF commun...
Dahua Wireless Wall Switch for remote control of 100–240 VAC powered devices. Features a built-in relay (NO/NC, max 13A) with two-way 868MHz RF communication, AES128 encryption, and frequency hopping for stable and secure operation. Monitors voltage, current and energy consumption, with overheat and overload protection. Managed via the DMSS app through a compatible Dahua Alarm Hub.
In Stock
| Store | Stock |
|---|---|
| PureTech UK | 1 |
| PureTech Derby | 1 |
SKU:
DHI-ARM7012-W2(868)
Click to copy
✔ Copied!
Product Details
Dahua Wireless Wall Switch for remote control of 100–240 VAC powered devices. Features a built-in relay (NO/NC, max 13A) with two-way 868MHz RF communication, AES128 encryption, and frequency hopping for stable and secure operation. Monitors voltage, current and energy consumption, with overheat and overload protection. Managed via the DMSS app through a compatible Dahua Alarm Hub.
| Manufacturer | Dahua |
|---|---|
| App | DMSS (iOS/Android) |
| Button | 1 |
| Carrier Frequency | 868.0 MHz – 868.6 MHz |
| Certifications | CE |
| Communication Distance | Up to 1200 m in open areas |
| Communication Mechanism | Two-way |
| Encryption | AES128 |
| Frequency Hopping | Yes |
| Indicator Light | 1 (pairing, power status, alarm) |
| Installation | Wall mount |
| Jamming Detection | Yes |
| Output Mode Default | Pulse |
| Output Type Default | Normally Closed |
| Power Monitoring | Voltage, current and energy consumption |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Protection | Overheat and overload |
| Relay Output | 1 x NO/NC, 100–240 VAC, Max 13A |
| Remote Update | Cloud update with automatic restore on failure |
| Required Dmss Version | 1.99.200 or later |
| Required Hub Firmware | V1.001.0000004.0.R.221104 or later |
| Test Mode | Yes |
| Transmitter Power Eirp | Limit 25 mW |
| Casing Material | PC + ABS |
| Dimensions | 39 mm × 33 mm × 19 mm |
| Net Weight | 45 g |
| Operating Temperature | -10°C to +55°C (indoor) |
| Storage Temperature | -10°C to +55°C |
| Operating Humidity | 10%–90% RH |
| Storage Humidity | 10%–90% RH |
