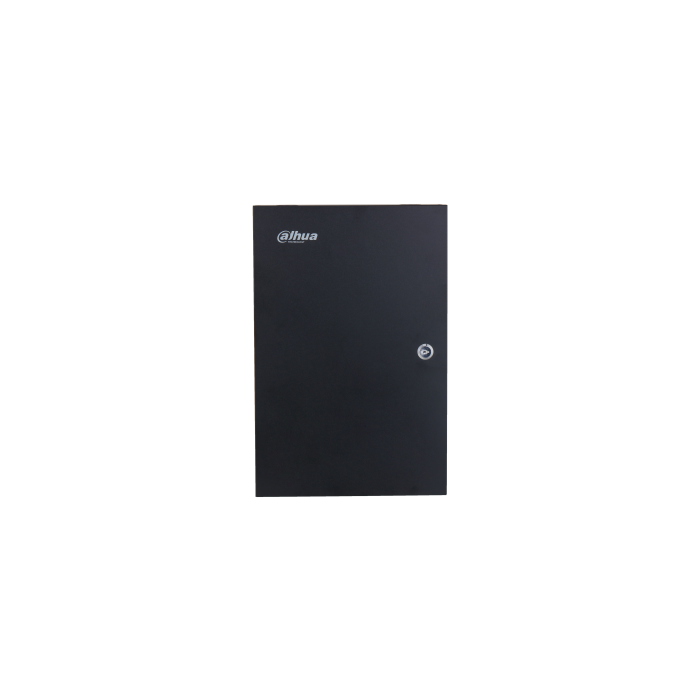

Dahua Single Door Two-Way Access Controller.
Dahua Single Door Two-Way Access Controller. Supports 100,000 users, 100,000 cards, 10,000 fingerprints and 500,000 access records. Verification metho...
Dahua Single Door Two-Way Access Controller. Supports 100,000 users, 100,000 cards, 10,000 fingerprints and 500,000 access records. Verification methods include card, PIN, fingerprint and QR code with support for RS-485 and Wiegand card readers. Compatible with ONVIF Profile C and platforms including SmartPSS Lite, DSS Pro and DMSS.
Contact 0345 863 9750 for availability
SKU:
DHI-ASC4201C-D
Click to copy
✔ Copied!
Product Details
Dahua Single Door Two-Way Access Controller. Supports 100,000 users, 100,000 cards, 10,000 fingerprints and 500,000 access records. Verification methods include card, PIN, fingerprint and QR code with support for RS-485 and Wiegand card readers. Compatible with ONVIF Profile C and platforms including SmartPSS Lite, DSS Pro and DMSS.
| Manufacturer | Dahua |
|---|---|
| Alarm Input Channels | 7 (expandable to 8 with external module) |
| Alarm Output Channels | 4 (expandable to 8 with external module) |
| Alarm Types | Anti-passback,Tamper,Duress,Door sensor timeout,Intrusion,Illegal card threshold,Duress fingerprint |
| API | true |
| Battery Space Dimensions Mm | 157 x 127 x 75 |
| Battery Support | true |
| Card Capacity | 100000 |
| Card Reader Interfaces | RS-485 (2 channels),Wiegand input (2 channels) |
| Card Reader Power Output | 12 V, 500 mA max per reader |
| Casing Material | SGCC galvanized steel |
| Dimensions Inches | 15.65 x 10.34 x 3.26 |
| Dimensions Mm | 397.6 x 262.6 x 82.8 |
| Door Configuration | Single door, bidirectional |
| Door Status Detection Channels | 1 |
| Exit Button Channels | 1 |
| Features | Anti-passback,Multi-person unlock,First-card unlock,Remote verification,Multi-factor authentication,Multi-user authentication,Real-time monitoring,Restricted/Trusted list,Fire alarm linkage,DHCP,Auto registration,P2P registration |
| Fingerprint Capacity | 10000 |
| Gross Weight Kg | 4 |
| Holiday Period | 128 groups |
| Installation | Surface mount |
| Interoperability | ONVIF Profile C |
| Lock Control Channels | 1 |
| Lock Power Output | 12 V, 1.2 A max |
| Main Processor | Embedded Processor |
| Network Port | 1x RJ-45, 10/100 Mbps self-adaptive |
| Network Protocols | IPv4,IPv6,UDP,TCP,P2P |
| Operating Environment | Indoor |
| Operating Humidity | 5%–95% RH, non-condensing |
| Operating System | Linux |
| Operating Temperature | -30°C to +60°C |
| OSDP Protocol | true |
| Password Capacity | 100000 |
| Period List | 128 groups |
| Platform Compatibility | SmartPSS Lite,DSS Pro,DMSS |
| Power Consumption | ≤ 3 W (standalone) |
| Power Supply | AC 100–240 V, 1.4 A input; 12 VDC, 6 A output |
| Product Type | Iron Case Access Controller |
| Record Capacity | 500000 |
| RS485 Ports | 3 |
| SDK | true |
| User Capacity | 100000 |
| User Types | General,VIP,Patrol,Guest,Blocklist,Other,Custom user 1,Custom user 2 |
| Verification Methods | Card,Password,Fingerprint,QR Code,Remote |
| Web Configuration | true |
