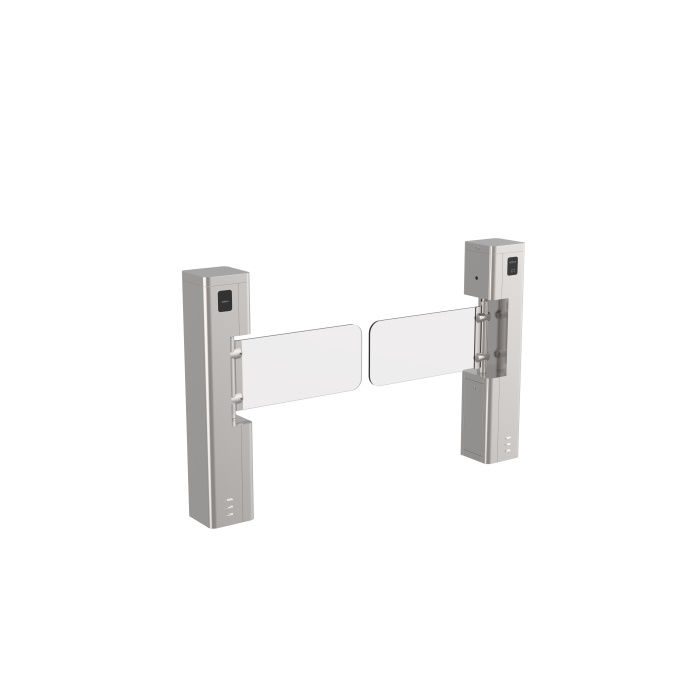

Dahua Swing Barrier Turnstile, Single Right Lane with One Card Reader Board.
Dahua Swing Barrier Turnstile, Single Right Lane with One Card Reader Board. 304 stainless steel cabinet (1.2mm thickness) with brushless DC motor, su...
Dahua Swing Barrier Turnstile, Single Right Lane with One Card Reader Board. 304 stainless steel cabinet (1.2mm thickness) with brushless DC motor, supporting a passage width of 1200mm and throughput of 20–60 people per minute. Features mechanical anti-squeeze and anti-collision protection, infrared anti-pinching, buzzer alarms, fire passage mode, and an MCBF rating exceeding 3 million cycles.
Contact 0345 863 9750 for availability
SKU:
DHI-ASGB210Z-R
Click to copy
✔ Copied!
Product Details
Dahua Swing Barrier Turnstile, Single Right Lane with One Card Reader Board. 304 stainless steel cabinet (1.2mm thickness) with brushless DC motor, supporting a passage width of 1200mm and throughput of 20–60 people per minute. Features mechanical anti-squeeze and anti-collision protection, infrared anti-pinching, buzzer alarms, fire passage mode, and an MCBF rating exceeding 3 million cycles.
| Manufacturer | Dahua |
|---|---|
| Anti Collision | true |
| Anti Corrosion Level | Low |
| Anti Squeeze | true |
| Anti Tailgating | true |
| Barrier Material | Acrylic |
| Cabinet Thickness Mm | 1.2 |
| Card Reader Boards | 1 |
| Casing Material | SUS304 stainless steel |
| Communication | RS-485 |
| Configuration | Single right turnstile |
| Dimensions Mm | 200 × 200 × 980 (L × W × H) |
| Fire Passage Support | true |
| Gross Weight Kg | 30 ± 3 |
| Input Power | 100VAC–240VAC |
| Installation Environment | Indoor |
| IR Detector Pairs | 1 |
| Main Processor | Embedded Processor |
| Max Power Consumption W | 55 |
| MCBF | ≥3 million cycles |
| Memory Mode | true |
| Motor | Brushless DC (24V) |
| Network Port | 1 × 10/100 Mbps self-adaptive Ethernet |
| Operating Humidity | 5%–93% RH, non-condensing |
| Operating Temperature | -15°C to +70°C |
| Passage Modes | Configurable (authorized entry/exit, free pass, bi-directional free pass) |
| Passage Width Mm | 1200 |
| Passing Speed People Per Min | 20–60 |
| Product Type | Swing Barrier Turnstile |
| Record Capacity | 100000 |
| Response Time S | 0.2 |
| Running Noise Db | ≤75 |
| Second Authentication | true |
| Top Cover Thickness Mm | 1.2 |
| Unlock Lock Speed | 0.6s–3.0s (adjustable) |
| Unlock Signal Type | Passive (relay/dry contact) |
| User Capacity | 100000 |
| Vandal Proof Rating | IK05, IK07 |
| Working Voltage | 24VDC |
