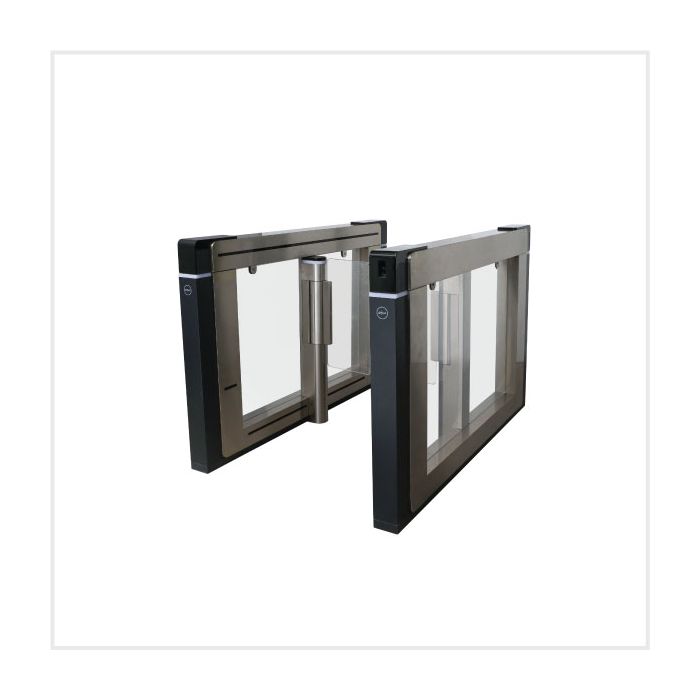

Dahua Swing Turnstile, right unilateral single module configuration.
Dahua Swing Turnstile, right unilateral single module configuration. Features a brushless servo motor, 30 pairs of IR detectors, and acrylic swing bar...
Dahua Swing Turnstile, right unilateral single module configuration. Features a brushless servo motor, 30 pairs of IR detectors, and acrylic swing barriers with a standard 600mm passage width (customisable up to 1000mm). Supports IC card reading, anti-collision, anti-pinch, anti-trailing, and passing frequency of 20–40 people per minute. Cabinet is SUS304 stainless steel with nanometer film surface finish.
Contact 0345 863 9750 for availability
SKU:
DHI-ASGB811X-R
Click to copy
✔ Copied!
Product Details
Dahua Swing Turnstile, right unilateral single module configuration. Features a brushless servo motor, 30 pairs of IR detectors, and acrylic swing barriers with a standard 600mm passage width (customisable up to 1000mm). Supports IC card reading, anti-collision, anti-pinch, anti-trailing, and passing frequency of 20–40 people per minute. Cabinet is SUS304 stainless steel with nanometer film surface finish.
| Manufacturer | Dahua |
|---|---|
| Access Control Type | Turnstile |
| Camera Body Style | Swing Turnstile |
| Access Control Integration | IC card standard; fingerprint sensor, barcode reader, face recognition available as custom modules |
| Alarm | true |
| Alarm Delay | 0s–60s, adjustable |
| Anti Collision | true |
| Anti Pinch | true |
| Anti Trailing | true |
| Cabinet Material | SUS304 stainless steel, 2.0mm |
| Communication | RS-485, RS-232 |
| Configuration | Right unilateral single module |
| Counting | true |
| Digital Quantity Port | 2 I/O ports |
| Dimensions | 1500mm × 120mm × 1000mm |
| Fan Material | Acrylic |
| Gross Weight | ≤120kg (single module) |
| IR Detectors | 30 pairs |
| Lifetime | ≥5 million cycles |
| Lock Unlock Speed | 0.6s–1.6s, adjustable |
| Memorizing | true |
| Motor Type | Brushless servo motor |
| Net Weight | 98kg (single module) |
| Noise Grade | Less than 60dB within 1.5 metres |
| Operating Environment | Indoor |
| Operating Humidity | 5%–93% RH |
| Operating Temperature | -10°C to +60°C |
| Passage Width | Standard 600mm; customisable up to 1000mm |
| Passing Duration | 2–60s, adjustable |
| Passing Frequency | 20–40 people/minute |
| Power Consumption Standby | ≤20W (single module) |
| Power Consumption Working | ≤100W (single module) |
| Power Supply | AC 100–240V, 50/60Hz |
| RS232 Port | 1 (for commissioning) |
| Sound And Light Prompt | true |
| Surface Processing | Nanometer film |
