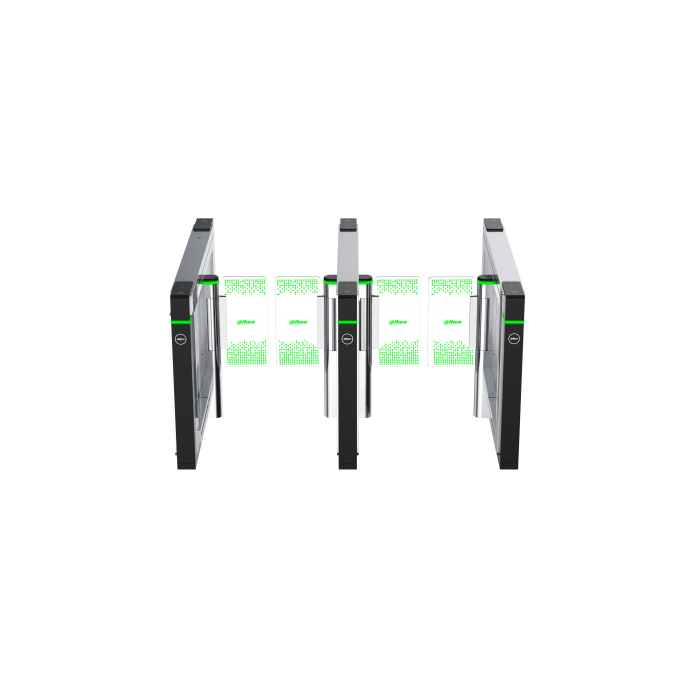

Dahua Swing Turnstile Double Module.
Dahua Swing Turnstile Double Module. The DHI-ASGB821X-D is a double-module swing barrier turnstile featuring a brushless servo motor, 30 pairs of IR d...
Dahua Swing Turnstile Double Module. The DHI-ASGB821X-D is a double-module swing barrier turnstile featuring a brushless servo motor, 30 pairs of IR detectors, and acrylic swing barriers. Supports IC card reading with optional fingerprint, barcode, and face recognition modules; integrates access control, turnstile control, and alarm functions via RS-485 and RS-232 wired communication.
Contact 0345 863 9750 for availability
SKU:
DHI-ASGB821X-D
Click to copy
✔ Copied!
Product Details
Dahua Swing Turnstile Double Module. The DHI-ASGB821X-D is a double-module swing barrier turnstile featuring a brushless servo motor, 30 pairs of IR detectors, and acrylic swing barriers. Supports IC card reading with optional fingerprint, barcode, and face recognition modules; integrates access control, turnstile control, and alarm functions via RS-485 and RS-232 wired communication.
| Manufacturer | Dahua |
|---|---|
| Mfr Catalogue No | 1.0.01.25.11011 |
| Access Control Features | IC card reading standard; fingerprint sensor, barcode reader, face recognition optional |
| Alarm | true |
| Alarm Delay | 0s–60s, adjustable |
| Anti Collision | true |
| Anti Pinch | true |
| Anti Trailing | true |
| Cabinet Material | SUS304 2.0mm stainless steel |
| Communication | RS-485, RS-232 |
| Counting | true |
| Digital Quantity Ports | 2 I/O ports |
| Fan Material | Acrylic |
| IR Detectors | 30 pairs |
| Lifetime | ≥5 million cycles |
| Lock Unlock Speed | 0.6s–1.6s, adjustable |
| Memorizing | true |
| Module Configuration | Double module |
| Motor Type | Brushless servo motor |
| Net Passage Width | Standard 600mm; up to 1000mm acrylic barriers customisable |
| Noise Grade | Less than 60dB at 1.5 metres |
| Operating Environment | Indoor |
| Passing Duration | 2–60s, adjustable |
| Passing Frequency | 20–40 people/minute |
| Power Consumption Standby | ≤40W |
| Power Consumption Working | ≤200W |
| Power Supply | AC 100–240V, 50/60Hz |
| RS232 Port | 1 (for commissioning) |
| Sound And Light Prompt | true |
| Surface Processing | Nanometer film |
| Camera Body Style | Swing Turnstile |
| Dimensions | 1500mm × 120mm × 1000mm |
| Net Weight | ≤123 kg |
| Gross Weight | ≤145 kg |
| Operating Temperature | -10°C to 60°C |
| Operating Humidity | 5%–93% RH |
