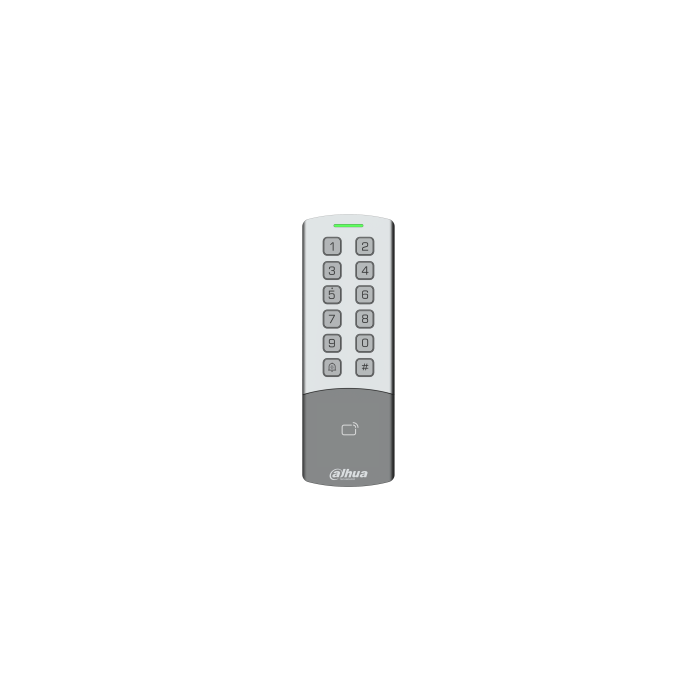

Dahua Access Control Panel with Mechanical Keypad and Multi-User Support.
Dahua Access Control Panel with Mechanical Keypad and Multi-User Support. Supports up to 10,000 users with multiple authentication methods including c...
Dahua Access Control Panel with Mechanical Keypad and Multi-User Support. Supports up to 10,000 users with multiple authentication methods including cards and passwords. Features zinc alloy construction, RS-485 and Wiegand communication, PoE power supply, and IP65/IK08 rating for outdoor use.
Contact 0345 863 9750 for availability
SKU:
DHI-ASI1201M-MEP
Click to copy
✔ Copied!
Product Details
Dahua Access Control Panel with Mechanical Keypad and Multi-User Support. Supports up to 10,000 users with multiple authentication methods including cards and passwords. Features zinc alloy construction, RS-485 and Wiegand communication, PoE power supply, and IP65/IK08 rating for outdoor use.
| Manufacturer | Dahua |
|---|---|
| Mfr Catalogue No | 1.0.01.25.12422 |
| Ingress Protection | IP65 |
| Camera Body Style | Surface Mount |
| Card Capacity | 10,000 cards |
| Communication | RS-485, Wiegand, TCP/IP |
| Construction | Zinc alloy front, plastic back |
| IK Rating | IK08 |
| Keypad | Mechanical with backlighting |
| Power Output | 12V 500mA (lock) / 12V 200mA (reader) |
| Power Supply | PoE |
| Record Capacity | 100,000 records |
| User Capacity | 10,000 users |
