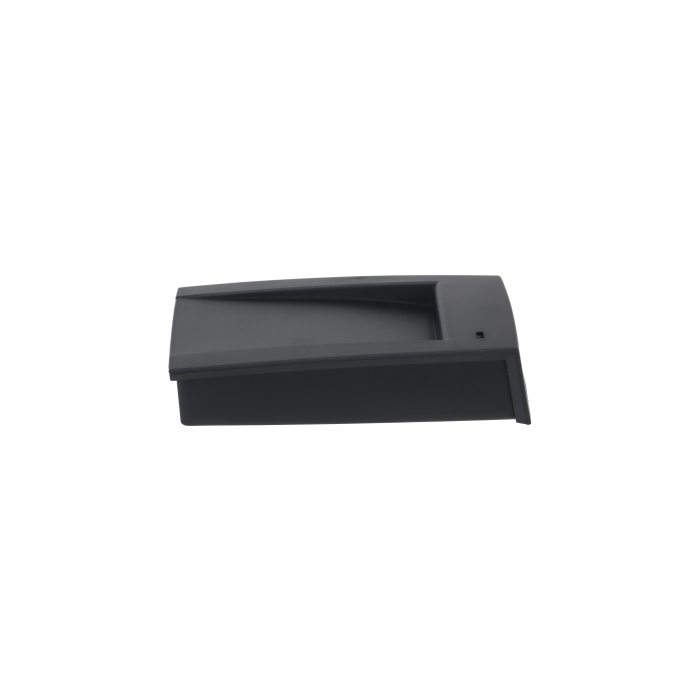

Dahua Card Enrollment Reader with USB 2.0 Plug-and-Play connectivity for issuing Mifare IC cards.
Dahua Card Enrollment Reader with USB 2.0 Plug-and-Play connectivity for issuing Mifare IC cards. Operates at 13.56MHz and connects directly to a PC v...
Dahua Card Enrollment Reader with USB 2.0 Plug-and-Play connectivity for issuing Mifare IC cards. Operates at 13.56MHz and connects directly to a PC via USB with no driver installation required. Features a dual-color LED indicator and audible buzzer to confirm successful or failed card issuance.
Contact 0345 863 9750 for availability
SKU:
DHI-ASM100-V1
Click to copy
✔ Copied!
Product Details
Dahua Card Enrollment Reader with USB 2.0 Plug-and-Play connectivity for issuing Mifare IC cards. Operates at 13.56MHz and connects directly to a PC via USB with no driver installation required. Features a dual-color LED indicator and audible buzzer to confirm successful or failed card issuance.
| Manufacturer | Dahua |
|---|---|
| Blocklist Allowlist | true |
| Buzzer | true |
| Card Issuing Distance | 3cm to 5cm |
| Card Reading Frequency | 13.56 MHz |
| Card Type | Mifare (IC card) |
| Casing Material | PC+ABS |
| Communication Mode | Issues IC (Mifare) cards |
| Compatible Platforms | SmartPSS-AC, DSS Pro, DSS Express |
| Connectivity | USB 2.0 |
| Dimensions Mm | 105 x 75 x 20 mm (H x W x D) |
| First Card Unlock | true |
| Gross Weight Kg | 0.18 |
| Main Processor | Embedded Processor |
| Max Transmission Power | 42 dBuA/m @ 10m |
| Modulation Type | AM |
| Network Update | true |
| Operating Environment | Indoor |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Operating Temperature | -30°C to +60°C |
| Plug And Play | true |
| Power Supply | 5V DC, 0.5A |
| Remote Verification | true |
| Status Indicator | Dual-color LED (Green: Normal, Red: Abnormal) |
