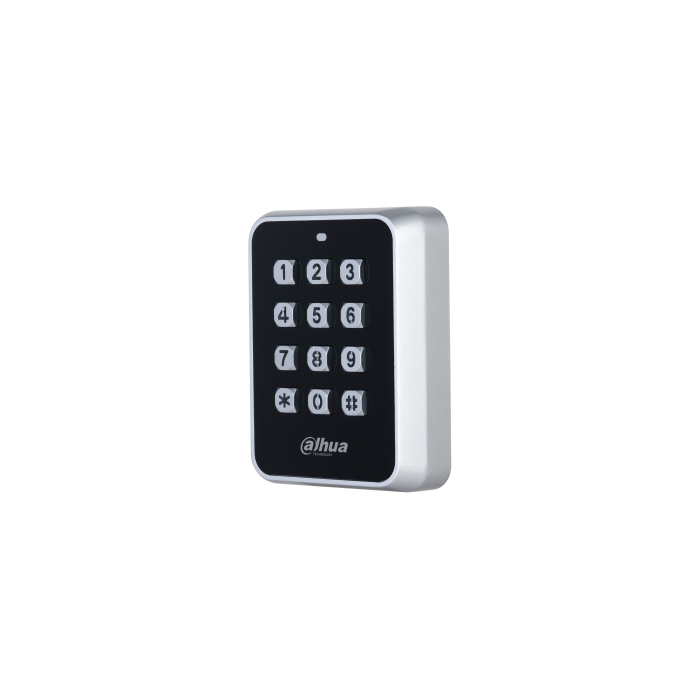

Dahua Vandal-proof Indoor Password ID Card Reader with keypad.
Dahua Vandal-proof Indoor Password ID Card Reader with keypad. Supports card and PIN code unlock modes using 125kHz ID card technology. Communicates v...
Dahua Vandal-proof Indoor Password ID Card Reader with keypad. Supports card and PIN code unlock modes using 125kHz ID card technology. Communicates via RS-485 and Wiegand (W26/W34) protocols, features a zinc alloy casing, metal backlit keypad, tamper alarm, and IK08 impact protection rating.
Contact 0345 863 9750 for availability
SKU:
DHI-ASR1101M-D-V1
Click to copy
✔ Copied!
Product Details
Dahua Vandal-proof Indoor Password ID Card Reader with keypad. Supports card and PIN code unlock modes using 125kHz ID card technology. Communicates via RS-485 and Wiegand (W26/W34) protocols, features a zinc alloy casing, metal backlit keypad, tamper alarm, and IK08 impact protection rating.
| Manufacturer | Dahua |
|---|---|
| Card Reading Distance | 0–3cm |
| Card Type | ID card (125kHz) |
| Casing | Zinc alloy |
| Certifications | CE; FCC |
| Communication | RS-485; Wiegand W26/W34 (W34 default) |
| Dimensions Mm | 110 x 85 x 26 |
| Frequency | 125kHz |
| IK Rating | IK08 |
| Installation | Surface mount; 86 case mount |
| Keypad | Metal with backlight |
| Net Weight Kg | 0.48 |
| Operating Environment | Indoor |
| Operating Humidity | 0–95% RH non-condensing |
| Operating Temperature | -10°C to +55°C |
| Power Consumption | ≤0.9W standby; ≤1W working |
| Power Supply | 9–15VDC, 100mA |
| Processor | 32-bit |
| Protection Features | Lightning-proof, antistatic, anti-short-circuit, overcurrent and overvoltage protection |
| Response Time | 0.1s |
| Tamper Alarm | true |
| Unlock Modes | Card; Password; Card + Password |
