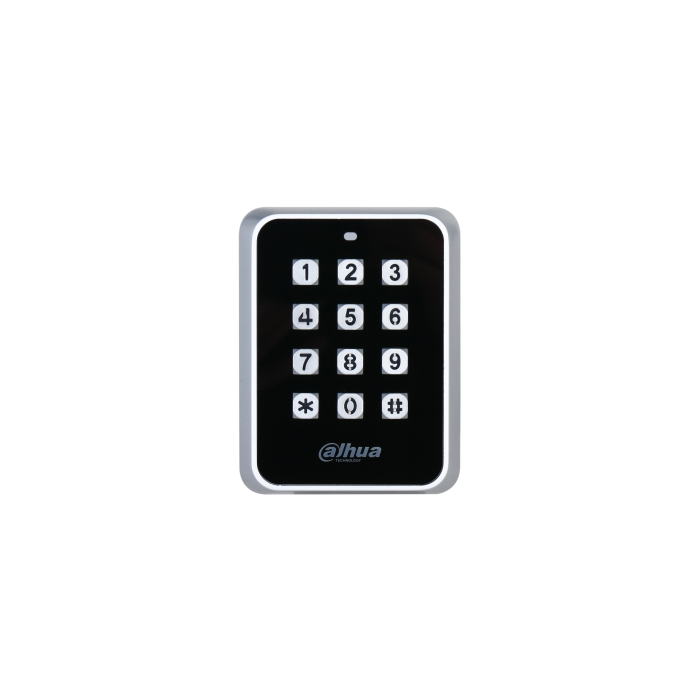

Dahua Vandal-proof Indoor Password IC Card Reader with Keypad.
Dahua Vandal-proof Indoor Password IC Card Reader with Keypad. Supports card, password, and card+password verification modes using Mifare IC cards at ...
Dahua Vandal-proof Indoor Password IC Card Reader with Keypad. Supports card, password, and card+password verification modes using Mifare IC cards at 13.56MHz. Features RS-485 and Wiegand (W26/W34) communication, zinc alloy casing rated IK08, with tamper alarm and backlit metal keypad.
In Stock
| Store | Stock |
|---|---|
| PureTech UK | 20 |
| PureTech Derby | Available to order |
SKU:
DHI-ASR1101M-V1
Click to copy
✔ Copied!
Product Details
Dahua Vandal-proof Indoor Password IC Card Reader with Keypad. Supports card, password, and card+password verification modes using Mifare IC cards at 13.56MHz. Features RS-485 and Wiegand (W26/W34) communication, zinc alloy casing rated IK08, with tamper alarm and backlit metal keypad.
| Manufacturer | Dahua |
|---|---|
| Mfr Catalogue No | 1.0.01.25.11661 |
| Buzzer | Yes |
| Card Reading Distance | 0–3 cm |
| Card Type | Mifare IC card |
| Casing | Zinc alloy |
| Certifications | CE, FCC |
| Communication | RS-485, Wiegand W26/W34 (W34 default) |
| Frequency | 13.56 MHz |
| Indicator | LED indicator |
| Installation | Surface mount; 86 case mount |
| Keypad | Metal backlit keypad |
| Max Transmission Power | 42 dBuA/m @ 10 m |
| Modulation | AM |
| Operating Environment | Indoor |
| Power Consumption | ≤ 0.9 W (standby), ≤ 1 W (working) |
| Power Supply | 9–15 VDC, 100 mA |
| Processor | 32-bit |
| Protection | IK08 |
| Response Time | 0.1 s |
| Tamper Alarm | Yes |
| Verification Modes | Card; Password; Card + Password |
| Camera Body Style | Surface mount / 86 case mount |
| Dimensions | 110 mm × 85 mm × 26 mm |
| Net Weight | 0.48 kg |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0%–95% RH, non-condensing |
