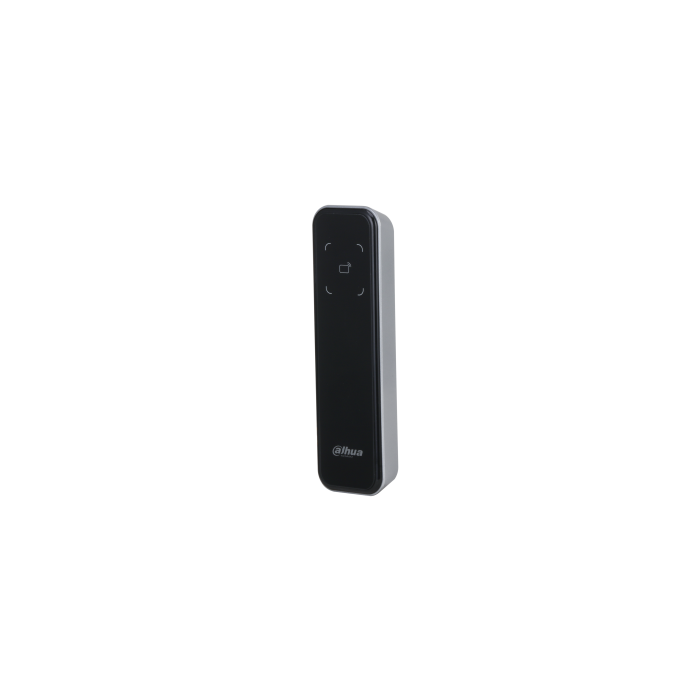

Dahua Card Swiping and Bluetooth Access Card Reader.
Dahua Card Swiping and Bluetooth Access Card Reader. Supports contactless IC card (Mifare) reading and Bluetooth BLE 4.0 unlock via DMSS mobile app. C...
Dahua Card Swiping and Bluetooth Access Card Reader. Supports contactless IC card (Mifare) reading and Bluetooth BLE 4.0 unlock via DMSS mobile app. Communicates via RS-485 and Wiegand output, with IP66 weatherproof rating for indoor and outdoor installation. Includes tamper alarm, buzzer, and LED indicator prompts.
Contact 0345 863 9750 for availability
SKU:
DHI-ASR2200A-B
Click to copy
✔ Copied!
Product Details
Dahua Card Swiping and Bluetooth Access Card Reader. Supports contactless IC card (Mifare) reading and Bluetooth BLE 4.0 unlock via DMSS mobile app. Communicates via RS-485 and Wiegand output, with IP66 weatherproof rating for indoor and outdoor installation. Includes tamper alarm, buzzer, and LED indicator prompts.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP66 |
| Bluetooth Frequency | 2400–2483.5 MHz |
| Bluetooth Max Tx Power | ≤20 dBm |
| Bluetooth Range Long | ≤10 m |
| Bluetooth Range Mid | ≤2 m |
| Bluetooth Range Short | ≤0.2 m |
| Bluetooth Standard | BLE 4.0 |
| Buzzer | Yes |
| Card Reading Distance | 0–5 cm |
| Card Type | IC card (Mifare / 13.56 MHz) |
| Casing Material | Tempered glass / PC |
| Certifications | CE, FCC |
| Communication Ports | RS-485 (x1), Wiegand output (x1 channel) |
| Compatible Devices | ASC3202B, DMSS mobile client |
| Dimensions | 135 mm × 40 mm × 15 mm (H × W × D) |
| Gross Weight | 0.16 kg |
| Installation | Surface mount |
| Operating Environment | Outdoor |
| Operating Humidity | 5%–95% RH, non-condensing |
| Operating Temperature | -30°C to +70°C |
| Power Consumption Standby | ≤0.9 W |
| Power Consumption Working | ≤1.7 W |
| Power Supply | 12 VDC, 0.5 A |
| Response Time | 0.1 s |
| RFID Frequency | 13.56 MHz |
| RFID Max Tx Power | 42 dBuA/m @ 10 m |
| RFID Modulation | AM |
| Tamper Alarm | Yes |
| Unlock Modes | Card swiping, Bluetooth |
