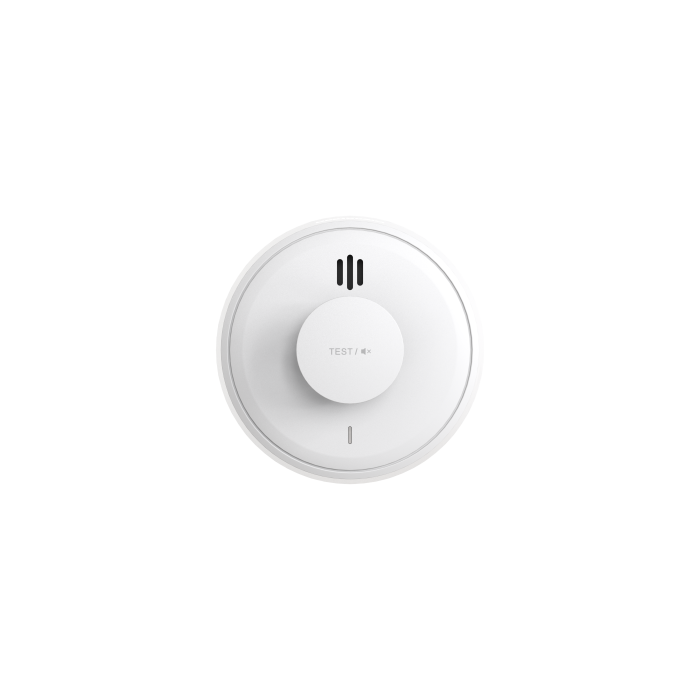

Dahua Wisualarm Wireless Interconnected Heat Alarm with 10-Year Sealed Battery.
Dahua Wisualarm Wireless Interconnected Heat Alarm with 10-Year Sealed Battery. Class A1 fixed-temperature heat detector (54°C to 65°C) using a thermi...
Dahua Wisualarm Wireless Interconnected Heat Alarm with 10-Year Sealed Battery. Class A1 fixed-temperature heat detector (54°C to 65°C) using a thermistor sensor, compliant with BS 5446-2:2003. Wirelessly interconnects up to 24 devices at 868MHz with a radio range of up to 1000m in open air, producing a visual and audible alarm of 85dB(A) at 3 metres. Alarm can be silenced via the central push button or an infrared remote controller for a 9-minute pause period.
Contact 0345 863 9750 for availability
SKU:
DHI-HY-HT10A-R8
Click to copy
✔ Copied!
Product Details
Dahua Wisualarm Wireless Interconnected Heat Alarm with 10-Year Sealed Battery. Class A1 fixed-temperature heat detector (54°C to 65°C) using a thermistor sensor, compliant with BS 5446-2:2003. Wirelessly interconnects up to 24 devices at 868MHz with a radio range of up to 1000m in open air, producing a visual and audible alarm of 85dB(A) at 3 metres. Alarm can be silenced via the central push button or an infrared remote controller for a 9-minute pause period.
| Manufacturer | Dahua |
|---|---|
| Alarm Current | ≤60mA |
| Alarm Mode | Visual and audible |
| Alarm Temperature Range | 54°C to 65°C (129°F to 149°F) |
| Alarm Volume | ≥85dB(A) at 3m |
| Battery Life | 10 years |
| Certifications | CE, UKCA |
| Circuit Board | SMD (Surface-Mount Device) |
| Compliance Standard | BS 5446-2:2003 |
| Detection Class | Class A1 |
| Installation | Ceiling mount |
| LED Alarm | Red flashes once per second |
| LED Fault | Red flashes once per minute |
| LED Standby | Green flashes once per minute |
| Max Interconnected Units | 24 |
| Monitoring Current | ≤15µA |
| Operating Environment | Indoor |
| Power Source | 3V CR123A lithium battery (non-replaceable, sealed) |
| Radio Signal Range | Up to 1000m in open air |
| Sampling Period | 10 seconds |
| Sensor Type | Thermistor |
| Silence Duration | 9 minutes |
| Silence Method | Central push button or infrared remote controller |
| Wireless Protocol | RF 868MHz |
| Casing Material | PC+ABS |
| Dimensions | φ93.8mm × H46.9mm |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | ≤95% RH non-condensing |
