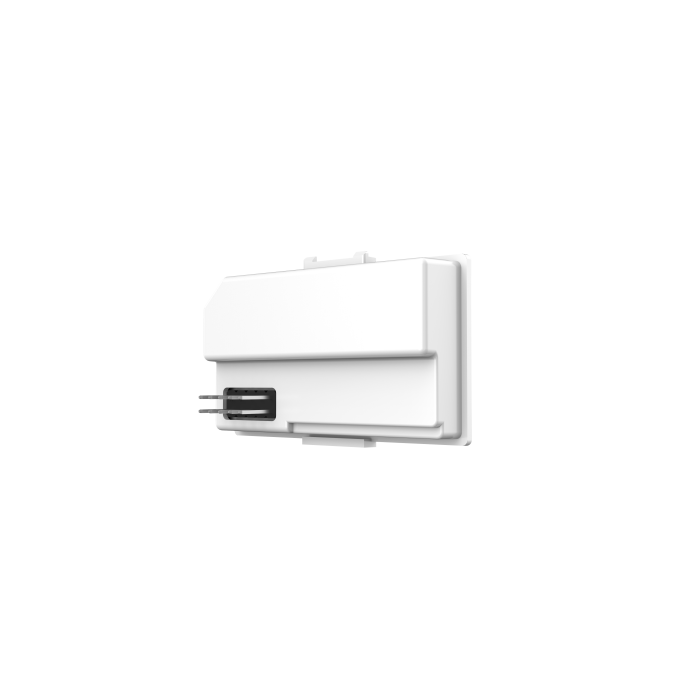

Wisualarm Wireless Interconnected Module for mains-powered alarm units.
Wisualarm Wireless Interconnected Module for mains-powered alarm units. Plug-in add-on module enabling wireless RF mesh communication between up to 24...
Wisualarm Wireless Interconnected Module for mains-powered alarm units. Plug-in add-on module enabling wireless RF mesh communication between up to 24 WisuLink and WisuLink Pro devices. Operates at 868MHz with a range of up to 1000 metres in open, interference-free conditions. Powered directly from the alarm head with no separate power supply required.
Contact 0345 863 9750 for availability
SKU:
DHI-HY-MRF60-R8
Click to copy
✔ Copied!
Color
White
Click to copy
✔ Copied!
Product Details
Wisualarm Wireless Interconnected Module for mains-powered alarm units. Plug-in add-on module enabling wireless RF mesh communication between up to 24 WisuLink and WisuLink Pro devices. Operates at 868MHz with a range of up to 1000 metres in open, interference-free conditions. Powered directly from the alarm head with no separate power supply required.
| Manufacturer | Dahua |
|---|---|
| Certifications | CE, UKCA, PSTI, RCM |
| Compatible Systems | Wisualarm mains-powered alarms, WisuLink, WisuLink Pro |
| Dimensions Mm | 53.5 × 38.2 × 11.7 |
| Max Interconnected Devices | 24 |
| Network Topology | RF mesh |
| Power Supply | Powered from alarm head |
| RF Frequency | 868MHz |
| RF Range | Up to 1000 metres (open, interference-free area) |
| RF Visual Indicator | Flashing Red: RF transmission; Flashing Blue: Successfully interconnected |
| Weight G | 11.9 |
| Installation Type | Plug-in module |
| Casing Material | PC+ABS |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | ≤95% RH (non condensing) |
