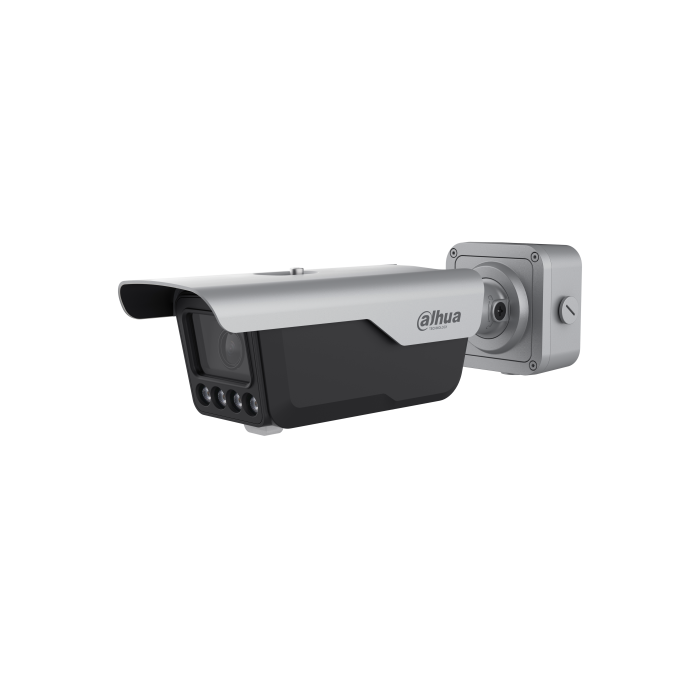

Dahua Access ANPR Camera
High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7.
Adopts intelligent deep learning algorithms a...
- High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7.
- Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and colour of vehicles.
- Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers.
- Built-in LED for simplified installation and commissioning.
- IP67 and IK10 rated.
- Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets.
- Easily adapts to scenarios through its motorized vari-focal lens.
Check Lead Times
SKU
DHI-ITC413-PW4D-IZ1
Product Details
Using deep learning algorithms, Smart ANPR Camera can recognize vehicles, license plates, vehicle brands and vehicle colours. It can be used in scenarios that require vehicle detection and recognition. It also supports using IVS to detect events, and triggers sound and light alarms. The camera can perform various functions without being connected to other devices, which not only greatly improves the security of factories and compounds, but also simplifies the installation process. The camera is dustproof, waterproof, and tamper-proof, and is IP67 rated and IK10 rated.
| Manufacturer | Dahua |
|---|---|
| Camera Type | ANPR |
| Resolution | 4MP |
| Colour | Black |
| Lens | 2.7-12mm |
| Lens Type | Varifocal |
| Camera Power Consumption | Power consumption in different conditions: No lighting < 6 W Lighting <12 W Speaker and Red/Blue Light Warning on < 17 W |
| Camera Power Supply | 12 VDC, 2 A and POE:802.3at, Type 2, Class 4, (44V to 57V), 0.455A to 0.351A, max.20W |
| Image Sensor | 1/1.8" CMOS |
| Effective Pixels | 2688 × 1520 |
| Minimum Illumination | 0.001 Lux@F1.4 (Colour, 30 IRE) 0.0002 Lux@F1.4 (B/W, 30 IRE) 0 Lux (Illuminator on) |
| Day / Night | IR filter, support three modes: colour/B/W/auto |
| White Balance | Auto; Regional Custom; Manual; Outdoor; Natural; Street Lamp |
| Working Enviroment | -30 to 65°C |
| Ingress Protection | IP67 |
| Dimensions | 395.0 x 120.8 x 127.8mm |
| Max IR Length | ANPR: 10 m (32.81 ft) Video monitoring: 30 m (98.43 ft) |
