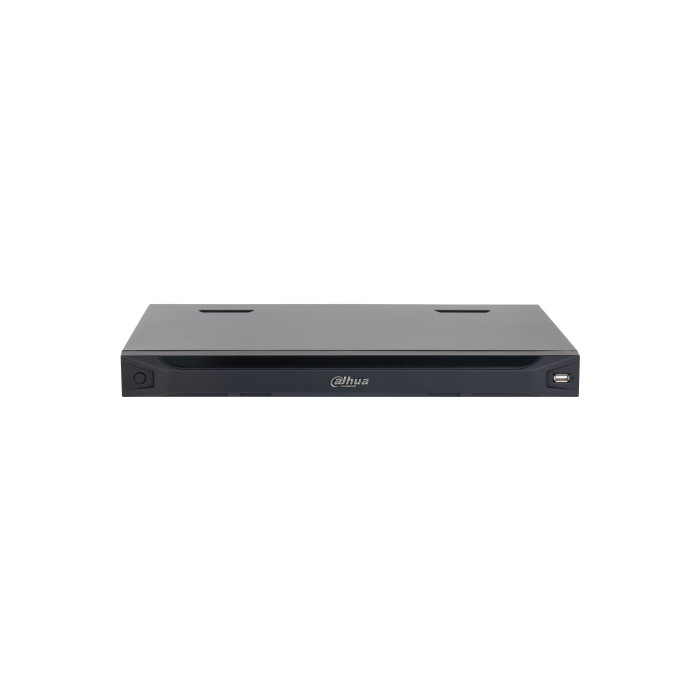

Dahua 9-Channel UHD Network Video Decoder with 9 HDMI Outputs and 4 HDMI Inputs.
Dahua 9-Channel UHD Network Video Decoder with 9 HDMI Outputs and 4 HDMI Inputs. Supports H.265 decoding of up to 192 channels (including 3-ch 32MP@25...
Dahua 9-Channel UHD Network Video Decoder with 9 HDMI Outputs and 4 HDMI Inputs. Supports H.265 decoding of up to 192 channels (including 3-ch 32MP@25fps or 57-ch 1080p@25fps), with 9 HDMI outputs supporting up to 1920x1080@60fps standard or custom resolutions up to 3840 pixels. Features 4-ch HDMI input up to 3840x2160@60fps, screen splicing across up to 9 screens, and compatibility with ONVIF, RTSP, Hikvision and Dahua protocols.
Contact 0345 863 9750 for availability
SKU:
DHI-NVD0905DU-4I
Click to copy
✔ Copied!
Product Details
Dahua 9-Channel UHD Network Video Decoder with 9 HDMI Outputs and 4 HDMI Inputs. Supports H.265 decoding of up to 192 channels (including 3-ch 32MP@25fps or 57-ch 1080p@25fps), with 9 HDMI outputs supporting up to 1920x1080@60fps standard or custom resolutions up to 3840 pixels. Features 4-ch HDMI input up to 3840x2160@60fps, screen splicing across up to 9 screens, and compatibility with ONVIF, RTSP, Hikvision and Dahua protocols.
| Manufacturer | Dahua |
|---|---|
| AI Function | Displays AI rules on large screen |
| Alarm Input | 1 channel |
| Alarm Output | 1 channel |
| Audio Compression | PCM, G.711, AAC |
| Audio Port | 3.5mm input and output (intercom) |
| Decoding Capability H265 | 3-ch 32MP@25fps, 9-ch 12MP@25fps, 14-ch 8MP@25fps, 18-ch 6MP@25fps, 24-ch 5MP@25fps, 29-ch 4MP@25fps, 37-ch 3MP@25fps, 57-ch 1080p@25fps, 192-ch D1@25fps |
| Decoding Channels | 192 (H.265); up to 47-ch 1080p@25fps (H.264) |
| Dimensions Mm | 482.6 x 317.3 x 44.5 (L x W x H) |
| Gross Weight Kg | 5.3-5.5 |
| Local Input Latency | 80ms (1080p@60 input, 1080p@60 output) |
| Max Input Resolution | 3840x2160@60fps |
| Max Open Windows | 36 |
| Max Output Resolution | 1920x1080@60fps (standard); custom up to 3840px width/height |
| Net Weight Kg | 4.5-4.8 |
| Network Port | 1x RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| Operating System | Embedded Linux |
| Osd | Customised OSD text (location, font size) |
| Power Consumption | ≤70W |
| Power Supply | 100-240 VAC, 50-60 Hz |
| Processor | High-performance embedded processor |
| Protocols | ONVIF, RTSP, Hikvision Private, Dahua Private |
| RS232 | 2x RJ-45 |
| RS485 | 1 |
| Screen Splicing | Up to 9 screens |
| USB Ports | 2x USB 3.0, 1x USB 2.0 |
| Video Compression | H.265, H.264, MJPEG, MPEG4, SVAC, MPEG2 |
| Video Inputs | 4-ch HDMI |
| Video Outputs | 9-ch HDMI |
| Window Splits | 1, 4, 6, 8, 9, 16, 25, 36; M×N custom (M×N ≤ 36) |
| Camera Body Style | 1U Rack-mount |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%-95% RH, non-condensing |
