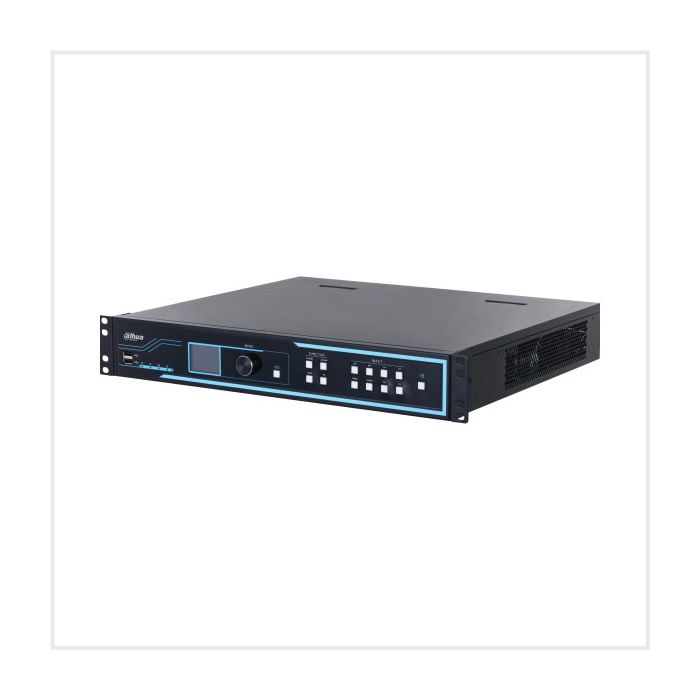

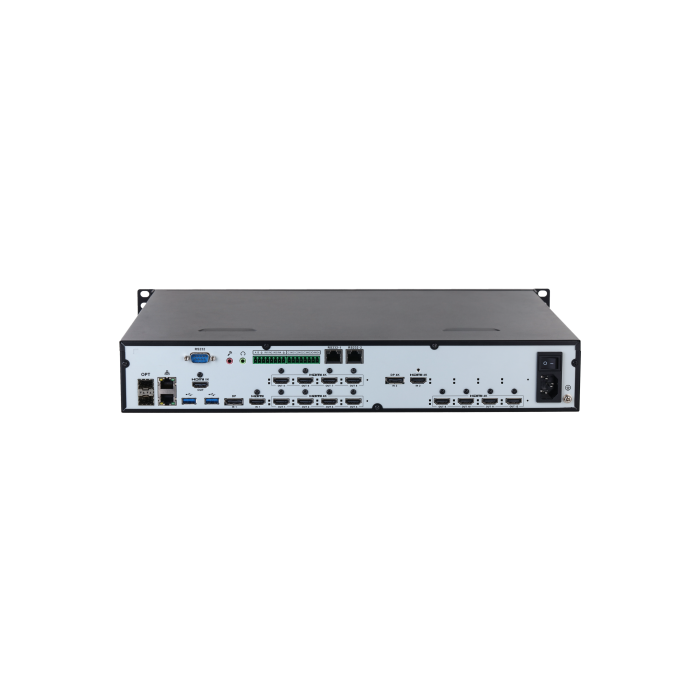

Dahua 12-Channel Ultra HD Network Video Decoder supporting 8K output.
Dahua 12-Channel Ultra HD Network Video Decoder supporting 8K output. Synchronously decodes up to 3-channel 8K@60fps, 27-channel 4K@30fps, 108-channel...
Dahua 12-Channel Ultra HD Network Video Decoder supporting 8K output. Synchronously decodes up to 3-channel 8K@60fps, 27-channel 4K@30fps, 108-channel 1080p@30fps, or 432-channel D1@30fps. Features 12x HDMI video outputs, 8x HDMI audio outputs, 4x video inputs (2x DP, 2x HDMI) supporting up to 4K@60fps acquisition, and ultra-low latency decoding of 60–80ms. Supports H.264, H.265, SVAC, MJPEG, MPEG4, and MPEG2 compression standards with flexible multi-screen splitting and screen splicing across up to 12 screens.
Contact 0345 863 9750 for availability
SKU:
DHI-NVD1205DU-4I-8K
Click to copy
✔ Copied!
Product Details
Dahua 12-Channel Ultra HD Network Video Decoder supporting 8K output. Synchronously decodes up to 3-channel 8K@60fps, 27-channel 4K@30fps, 108-channel 1080p@30fps, or 432-channel D1@30fps. Features 12x HDMI video outputs, 8x HDMI audio outputs, 4x video inputs (2x DP, 2x HDMI) supporting up to 4K@60fps acquisition, and ultra-low latency decoding of 60–80ms. Supports H.264, H.265, SVAC, MJPEG, MPEG4, and MPEG2 compression standards with flexible multi-screen splitting and screen splicing across up to 12 screens.
| Manufacturer | Dahua |
|---|---|
| Mfr Catalogue No | 1.0.01.01.16135 |
| AI Functions | People, faces, motor and non-motor vehicles, crowd density, AI rules display |
| Alarm Inputs | 4 × 5V TTL |
| Alarm Outputs | 4 × relay (30VDC 1A / 125VAC 0.5A) |
| Audio Compression | PCM, G711 |
| Audio Outputs | 8 × HDMI, 1 × 3.5mm |
| Compression Standards | H.265, H.264, SVAC, MJPEG, MPEG4, MPEG2 |
| Decoding Capability | 3-channel 8K@60fps / 27-channel 4K@30fps / 108-channel 1080p@30fps / 432-channel D1@30fps |
| Decoding Latency | 60–80 ms |
| Dimensions Mm | 70 × 408 × 440 mm (H × W × D) |
| Gross Weight Kg | 7.5–7.8 kg |
| Input Resolutions | Up to 4096×2160@30fps (DP2), 3840×2160@60fps (DP2), 3840×2160@30fps (HDMI2) |
| Max Decode Resolution | 8K (7680×4320) @ 60fps |
| Max Open Windows | 36 |
| Net Weight Kg | 5.5–5.8 kg |
| Network Ports | 2 × Gigabit optical, 2 × Gigabit electrical |
| Operating System | Embedded Linux |
| Output Resolutions | 1024×768@60fps, 1280×720@60fps, 1280×1024@60fps, 1920×1080@60fps, 1920×1200@60fps, 2048×1152@60fps, 3840×2160@30fps, 3840×2160@60fps |
| Power Consumption | ≤100 W |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Processor | High-performance embedded processor |
| RS232 Ports | 3 |
| RS485 Ports | 1 |
| Screen Splicing | Up to 12 screens |
| Small Pitch LED Support | true |
| USB Ports | 2 × USB 3.0, 2 × USB 2.0 |
| Video Inputs | 2 × DP, 2 × HDMI |
| Video Outputs | 12 × HDMI |
| Virtual LED Osd | true |
| Window Splits | 1, 4, 6, 8, 9, 16, 25, 36 and M×N custom (M×N ≤ 36) |
| Camera Body Style | 1.5U Rack-mount |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–95% (86 kPa–106 kPa) |
