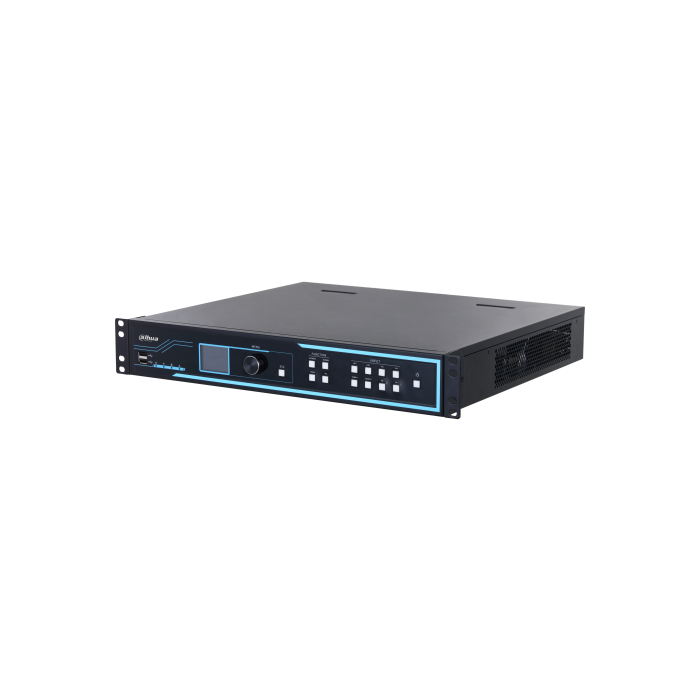

Dahua 16-Channel 8K Network Video Decoder, 2U Rack Mount.
Dahua 16-Channel 8K Network Video Decoder, 2U Rack Mount. Supports decoding up to 8K resolution at 25fps across 16 HDMI output ports, with 4 HDMI inpu...
Dahua 16-Channel 8K Network Video Decoder, 2U Rack Mount. Supports decoding up to 8K resolution at 25fps across 16 HDMI output ports, with 4 HDMI input ports. Compatible with H.265, H.264, MPEG4, and MJPEG compression standards, with output resolutions up to 4K (3840×2160) per port.
Contact 0345 863 9750 for availability
SKU:
DHI-NVD1605DU-4I-8K-2U2H
Click to copy
✔ Copied!
Product Details
Dahua 16-Channel 8K Network Video Decoder, 2U Rack Mount. Supports decoding up to 8K resolution at 25fps across 16 HDMI output ports, with 4 HDMI input ports. Compatible with H.265, H.264, MPEG4, and MJPEG compression standards, with output resolutions up to 4K (3840×2160) per port.
| Manufacturer | Dahua |
|---|---|
| Camera Power Supply | AC 100-240V |
| Alarm IO | Alarm input, alarm output |
| Audio Channels | 12 |
| Channels Output | 16 |
| Compression | H.265,H.264,MPEG4,MJPEG |
| HDMI Input Ports | 4 |
| HDMI Output Ports | 16 |
| Max Decode Framerate | 25fps |
| Max Decode Resolution | 8K |
| Max Output Resolution | 4K (3840x2160) |
| Network Ports | 2 x 10/100/1000 Mbps Ethernet, 2 x Gigabit Optical |
| Serial Ports | RS-232,RS-485 |
| USB Ports | 2 x USB 3.0 |
| Camera Body Style | 2U Rack Mount |
