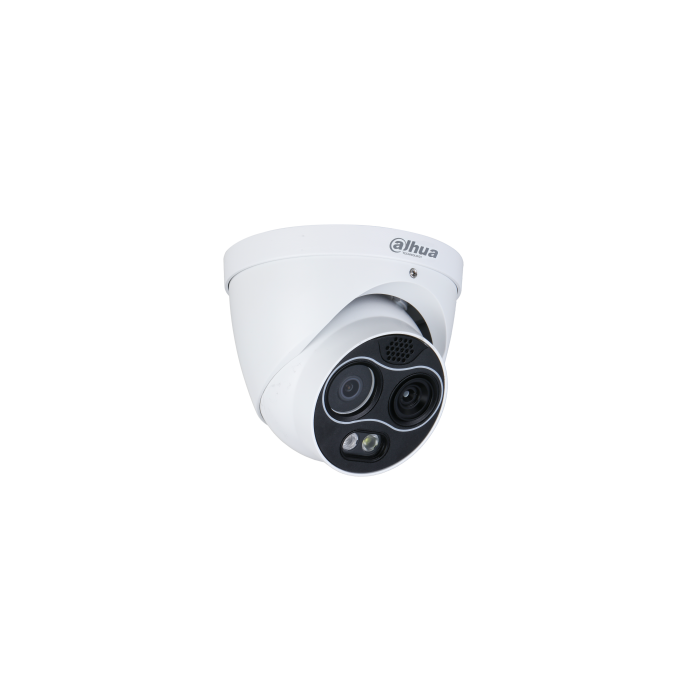

Dahua Thermal Camera with Vanadium Oxide Uncooled Detector.
Dahua Thermal Camera with Vanadium Oxide Uncooled Detector. Features 4MP progressive scan CMOS, fire and smoking detection, temperature measurement fr...
Dahua Thermal Camera with Vanadium Oxide Uncooled Detector. Features 4MP progressive scan CMOS, fire and smoking detection, temperature measurement from -20°C to +550°C, built-in white light and IR illuminator with hybrid fusion technology.
Contact 0345 863 9750 for availability
SKU:
DHI-TPC-DF1241-TB7F8-DW-S2
Click to copy
✔ Copied!
Product Details
Dahua Thermal Camera with Vanadium Oxide Uncooled Detector. Features 4MP progressive scan CMOS, fire and smoking detection, temperature measurement from -20°C to +550°C, built-in white light and IR illuminator with hybrid fusion technology.
| Manufacturer | Dahua |
|---|---|
| Lens Size | 7MM/8MM |
| Lighting Type | Built-in white light and IR illuminator |
| Camera Body Style | unknown |
| Lens Type | Thermal |
| Lens | 7mm |
| Effective Pixels | 2336 × 1752 |
| Resolution | 4MP |
| Image Sensor | 1/2.7'' CMOS |
| Minimum Illumination | Colour: 0.05 lux Black & white: 0.005 lux 0 lux (IR on) |
| White Balance | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural |
| Ingress Protection | IP67 |
| Camera Power Supply | 12 VDC ± 20% / PoE |
| Camera Power Consumption | Basic: <4.5 W (12 VDC, LED off); 4.8 W (PoE) Max: <10.1 W (12 VDC, LED on, heater on); 12.3 W (PoE) |
| IR Length | Up to 30m |
| Built-in Audio | Audio In/out |
| Day / Night | Auto (ICR); Colour; B/W |
| Dimensions | 122 × 122 × 112mm |
| Detector Type | Vanadium oxide uncooled focal plane |
| Special Features | Fire detection, smoking detection, tripwire, intrusion detection, hybrid fusion |
| Temperature Range | -20°C to +550°C |
