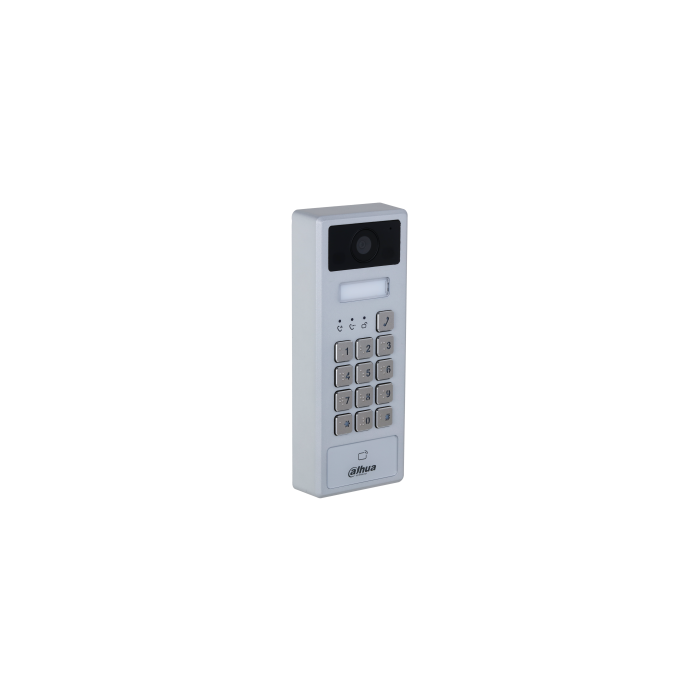

Dahua 2-Wire Hybrid Villa Door Station with 2MP HDR Camera and Keypad.
Dahua 2-Wire Hybrid Villa Door Station with 2MP HDR Camera and Keypad. Features a 1/2.8" 2MP CMOS HDR camera with 84° horizontal field of view, auto I...
Dahua 2-Wire Hybrid Villa Door Station with 2MP HDR Camera and Keypad. Features a 1/2.8" 2MP CMOS HDR camera with 84° horizontal field of view, auto IR illumination, and DWDR. Supports three unlock methods (IC card, password, remote unlock), two-way half-duplex audio, and tamper alarm. Rated IP65 and IK08 for outdoor surface mount installation.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO2023S
Click to copy
✔ Copied!
Product Details
Dahua 2-Wire Hybrid Villa Door Station with 2MP HDR Camera and Keypad. Features a 1/2.8" 2MP CMOS HDR camera with 84° horizontal field of view, auto IR illumination, and DWDR. Supports three unlock methods (IC card, password, remote unlock), two-way half-duplex audio, and tamper alarm. Rated IP65 and IK08 for outdoor surface mount installation.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 |
| Lighting Type | Auto IR |
| Alarm Output | 1 |
| Audio Input | 1 channel (MIC) |
| Audio Mode | Two-way half-duplex |
| Audio Output | Built-in speaker |
| Button Type | Mechanical |
| Resolution | 2MP |
| Camera Sensor | 1/2.8" 2MP CMOS HDR |
| Card Capacity | 100 |
| Card Reading Distance | 0–2 cm |
| Card Type | IC card |
| Casing Material | Aluminum alloy |
| Certifications | CE |
| Day Night | Auto (ICR) / Color / B/W |
| Dimensions Mm | 205.8 x 85.3 x 46.5 |
| Door Status Detection | 1 |
| Exit Button Port | 1 |
| Field Of View Diagonal | 99° |
| Field Of View Horizontal | 84° |
| Field Of View Vertical | 43° |
| Gross Weight G | 978 |
| IK Rating | IK08 |
| Installation | Surface Mount |
| Issue Card Locally | true |
| Keypad | Yes, with Braille |
| Leave Video Messages | Yes (SD card in VTH required) |
| Local Lock | true |
| Lock Control | 1 |
| Noise Reduction | 3D NR |
| Operating Altitude | 0–3000m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH non-condensing |
| Operating Temperature | -40°C to +60°C |
| Power Adapter | Optional |
| Power Consumption Standby | ≤2W |
| Power Consumption Working | ≤12W |
| Power Output | 12V, 500mA |
| Power Supply | 2-wire Controller (DC 48V system) |
| Processor | Embedded Processor |
| Required Accessory | VTNC1003C 2-wire Controller (sold separately) |
| RS485 | 1 |
| Second Lock | true |
| Tamper Alarm | true |
| Unlock Methods | IC card, Password, Remote unlock |
| Video Resolution NTSC | 960 x 480 @ 30fps |
| Video Resolution PAL | 960 x 576 @ 25fps |
| WDR | DWDR |
