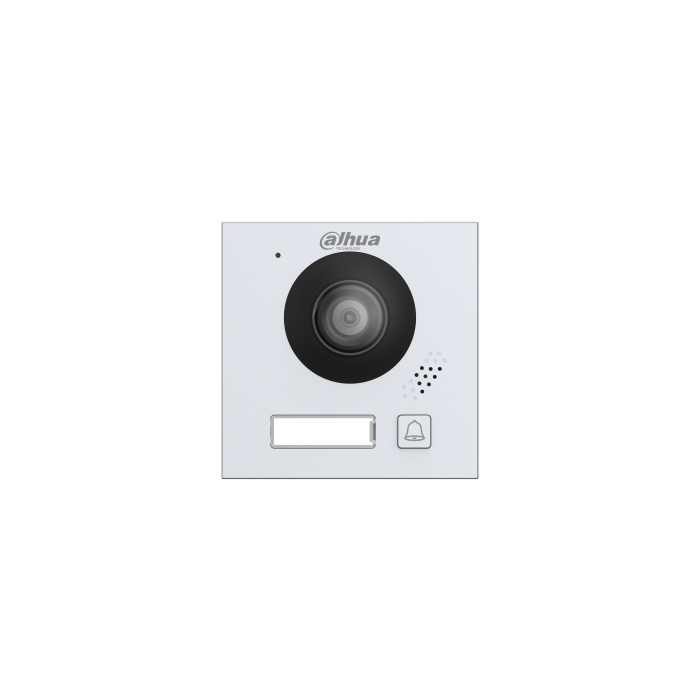

Dahua 2MP Fisheye 2-Wire Hybrid Modular Apartment Door Station with 160° Wide Angle Camera.
Dahua 2MP Fisheye 2-Wire Hybrid Modular Apartment Door Station with 160° Wide Angle Camera. Features an anodized aluminum front panel, 1/2.5" CMOS low...
Dahua 2MP Fisheye 2-Wire Hybrid Modular Apartment Door Station with 160° Wide Angle Camera. Features an anodized aluminum front panel, 1/2.5" CMOS low illumination sensor with 120dB WDR, Auto IR light compensation, and analog 2-wire communication. Supports IC card, ID card, password, fingerprint, and remote unlock modes; rated IK07 and IP65 for outdoor use.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103F-1
Click to copy
✔ Copied!
Product Details
Dahua 2MP Fisheye 2-Wire Hybrid Modular Apartment Door Station with 160° Wide Angle Camera. Features an anodized aluminum front panel, 1/2.5" CMOS low illumination sensor with 120dB WDR, Auto IR light compensation, and analog 2-wire communication. Supports IC card, ID card, password, fingerprint, and remote unlock modes; rated IK07 and IP65 for outdoor use.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 |
| Image Sensor | 1/2.5" CMOS Low Illumination |
| Camera Body Style | Modular Flush/Surface Mount |
| Lighting Type | Auto IR |
| Alarm Output | 1 channel |
| Audio Enhancement | Echo suppression, digital noise reduction |
| Audio Input | 1 channel |
| Audio Mode | Two-way audio (half-duplex) |
| Audio Output | Built-in speaker |
| Button Type | Mechanical |
| Resolution | 2MP |
| Casing Material | Aluminum alloy |
| Certifications | CE |
| Communication Mode | Analog 2-wire |
| Day Night | Auto (ICR) / Color / B&W |
| Dimensions | 100mm × 100mm × 47.35mm |
| Door Status Detection | 1 channel |
| Exit Button | 1 channel |
| Field Of View | H: 168.6°, V: 87.1°, D: 176.7° |
| IK Rating | IK07 |
| Installation | Flush Mount, Surface Mount |
| Leave Video | Yes (SD card in VTH required) |
| Lens Type | Fisheye |
| Lock Control | 1 channel |
| Noise Reduction | 3D NR |
| Operating Altitude | 0–3000m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% |
| Operating Temperature | -40°C to +60°C |
| OS | Embedded Linux |
| Power Consumption | ≤4W standby, ≤12W working |
| Power Output | 1 channel, 12V, 1A |
| Power Supply | 2-wire controller |
| Processor | Embedded Processor |
| RS485 | 1 |
| Tamper Alarm | Yes |
| Unlock Modes | IC card, ID card, password, fingerprint, remote unlock (sub-module required for first 4 methods) |
| Video Frame Rate | PAL: 25fps, NTSC: 30fps |
| Video Resolution | PAL: 960×576, NTSC: 960×480 |
| WDR | 120dB |
