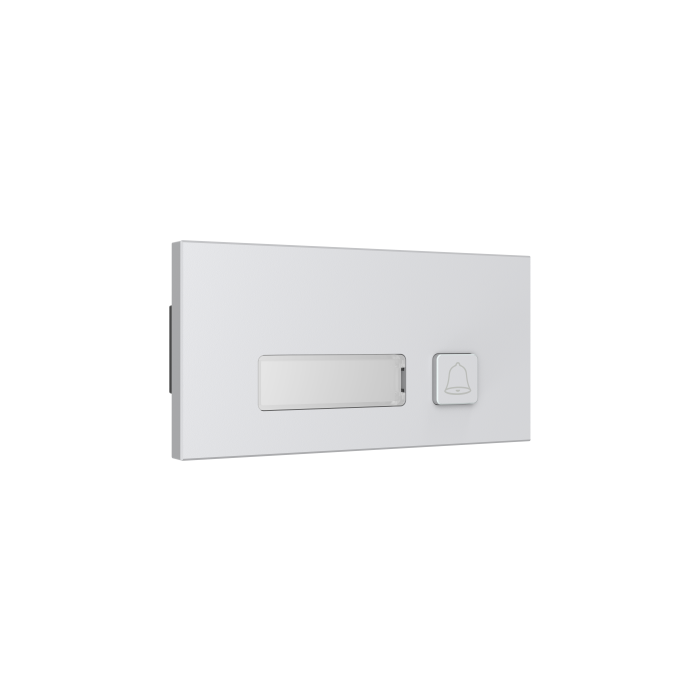

Dahua Modular Video Door Station Single Call Button Module with aluminum alloy casing.
Dahua Modular Video Door Station Single Call Button Module with aluminum alloy casing. Supports flush and surface mount installation with IP65 weather...
Dahua Modular Video Door Station Single Call Button Module with aluminum alloy casing. Supports flush and surface mount installation with IP65 weatherproofing (silicone sealant required) and IK07 vandal resistance. Powered by 5 VDC from other modules and can also provide 5 VDC output to adjacent modules in a modular assembly.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103F-MB1
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Door Station Single Call Button Module with aluminum alloy casing. Supports flush and surface mount installation with IP65 weatherproofing (silicone sealant required) and IK07 vandal resistance. Powered by 5 VDC from other modules and can also provide 5 VDC output to adjacent modules in a modular assembly.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Silver |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 50.0 mm × 30.50 mm (3.94" × 1.97" × 1.20") |
| Gross Weight | 0.18 kg (0.40 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Main Processor | Embedded Processor |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Power Consumption | ≤0.5 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
