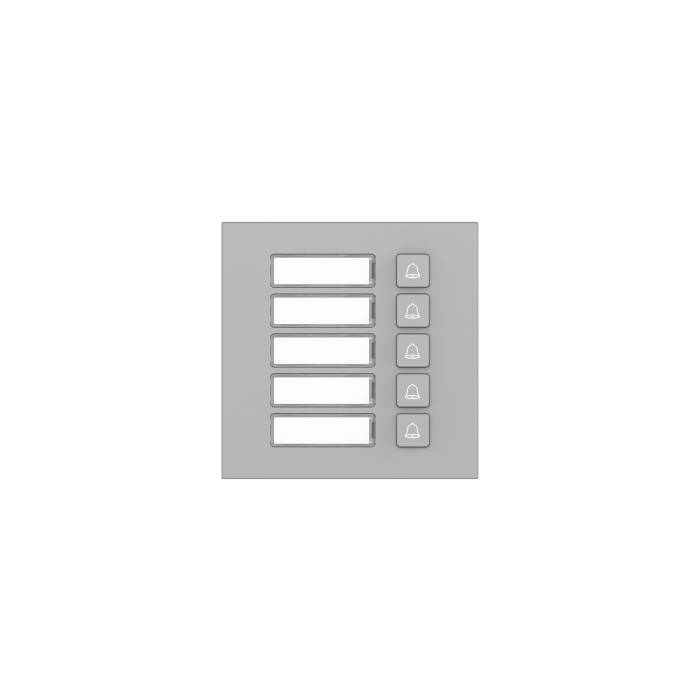

Dahua Modular Video Door Station Button Module with five call buttons.
Dahua Modular Video Door Station Button Module with five call buttons. Aluminum alloy construction with IP65 weatherproof and IK07 vandal-resistant ra...
Dahua Modular Video Door Station Button Module with five call buttons. Aluminum alloy construction with IP65 weatherproof and IK07 vandal-resistant ratings. Supports flush and surface mount installation, operates from 5 VDC supplied by other modules, and provides 5 VDC output to power additional modules in the modular door station system.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103F-MB5
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Door Station Button Module with five call buttons. Aluminum alloy construction with IP65 weatherproof and IK07 vandal-resistant ratings. Supports flush and surface mount installation, operates from 5 VDC supplied by other modules, and provides 5 VDC output to power additional modules in the modular door station system.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Silver |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 100 mm × 30.50 mm (3.94" × 3.94" × 1.2") |
| Gross Weight | 0.31 kg (0.68 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Main Processor | Embedded Processor |
| Module Type | Call button module |
| Number Of Buttons | 5 |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Power Consumption | ≤0.5 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
