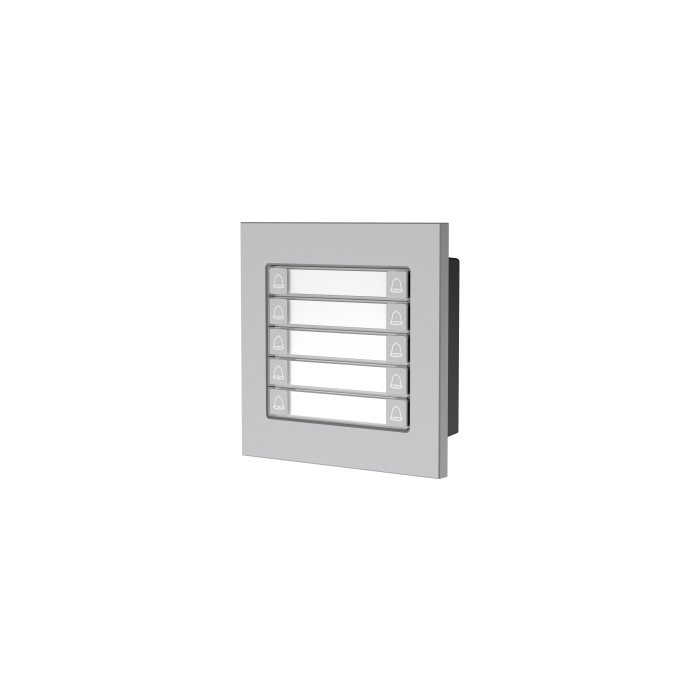

Dahua Modular Door Station Button Module with 10 Mechanical Buttons.
Dahua Modular Door Station Button Module with 10 Mechanical Buttons. Features a 100mm × 100mm × 26mm aluminum alloy housing with 10 mechanical call bu...
Dahua Modular Door Station Button Module with 10 Mechanical Buttons. Features a 100mm × 100mm × 26mm aluminum alloy housing with 10 mechanical call buttons arranged in a grid layout, supporting direct apartment/unit calling. Powered by 5 VDC from other system modules and also provides 5 VDC output to connected modules. Rated IP65 and IK07 for outdoor installation.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103F-MDB10
Click to copy
✔ Copied!
Product Details
Dahua Modular Door Station Button Module with 10 Mechanical Buttons. Features a 100mm × 100mm × 26mm aluminum alloy housing with 10 mechanical call buttons arranged in a grid layout, supporting direct apartment/unit calling. Powered by 5 VDC from other system modules and also provides 5 VDC output to connected modules. Rated IP65 and IK07 for outdoor installation.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 |
| Appearance Color | Silver |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Certifications | CE EMC; CE LVD |
| Dimensions | 100.0 mm × 100.0 mm × 26 mm (3.94" × 3.94" × 1.02") |
| Gross Weight | 0.33 kg (0.73 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Installation Note | Silicone sealant required for IP65 protection |
| Number Of Buttons | 10 |
| Operating Altitude | 0–3,000 m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH, non-condensing |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Consumption Standby | ≤0.2 W |
| Power Consumption Working | ≤0.6 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| Storage Humidity | 30%–75% RH |
| Storage Temperature | 0°C to +40°C (+32°F to +104°F) |
