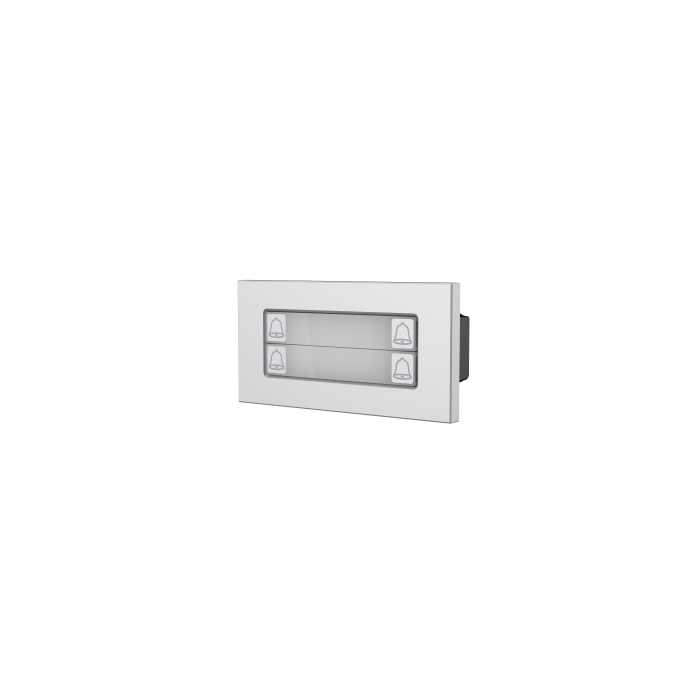

Dahua Modular Video Door Station Button Module with 4 Mechanical Buttons.
Dahua Modular Video Door Station Button Module with 4 Mechanical Buttons. Compact aluminium alloy module measuring 100mm × 50mm × 26mm, rated IK07 and...
Dahua Modular Video Door Station Button Module with 4 Mechanical Buttons. Compact aluminium alloy module measuring 100mm × 50mm × 26mm, rated IK07 and IP65 for outdoor use. Operates on 5VDC supplied by other modules and can also provide 5VDC power output to additional modules in a modular door station assembly.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103F-MDB4
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Door Station Button Module with 4 Mechanical Buttons. Compact aluminium alloy module measuring 100mm × 50mm × 26mm, rated IK07 and IP65 for outdoor use. Operates on 5VDC supplied by other modules and can also provide 5VDC power output to additional modules in a modular door station assembly.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Silver |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Certifications | CE EMC; CE LVD |
| Dimensions | 100.0 mm × 50.0 mm × 26 mm (3.94" × 1.97" × 1.02") |
| Gross Weight | 0.24 kg (0.53 lb) |
| IK Rating | IK07 |
| Installation Type | Modular (part of VTO4103F-X series) |
| Number Of Buttons | 4 |
| Operating Altitude | 0 m–3,000 m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH, non-condensing |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Consumption | ≤0.2 W (standby), ≤0.6 W (working) |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| Storage Humidity | 30%–75% RH |
| Storage Temperature | 0°C to +40°C (+32°F to +104°F) |
